频率：50MHZ
尺寸：5.0x3.2mm
美国FMI晶振,FMXMC3S-120FFC-50.000000M-CM,50MHZ,5032mm,进口无源谐振器,石英贴片晶振,50MHZ贴片晶振,5032mm石英晶振,无源晶振,轻薄型晶振,SMD无源晶体,尺寸5.0x3.2mm,频率50MHZ,负载20pF,工作温度 -40~+85°C,绿色环保晶振,低损耗晶振,低功耗晶振,高品质晶振,高性能晶振,移动通信晶振,娱乐设备晶振,数码电子晶振,小型设备晶振.
美国FMI晶振,FMXMC3S-120FFC-50.000000M-CM,50MHZ,5032mm特点:
表面贴装陶瓷SMD晶体组件。
Micro 5x3.2/超薄
高可靠性
紧密稳定性
美国FMI晶振,FMXMC3S-120FFC-50.000000M-CM,50MHZ,5032mm 参数表
| Parameter | Specification | ||||||||||||||
| Frequency Range | 50.00 MHz | ||||||||||||||

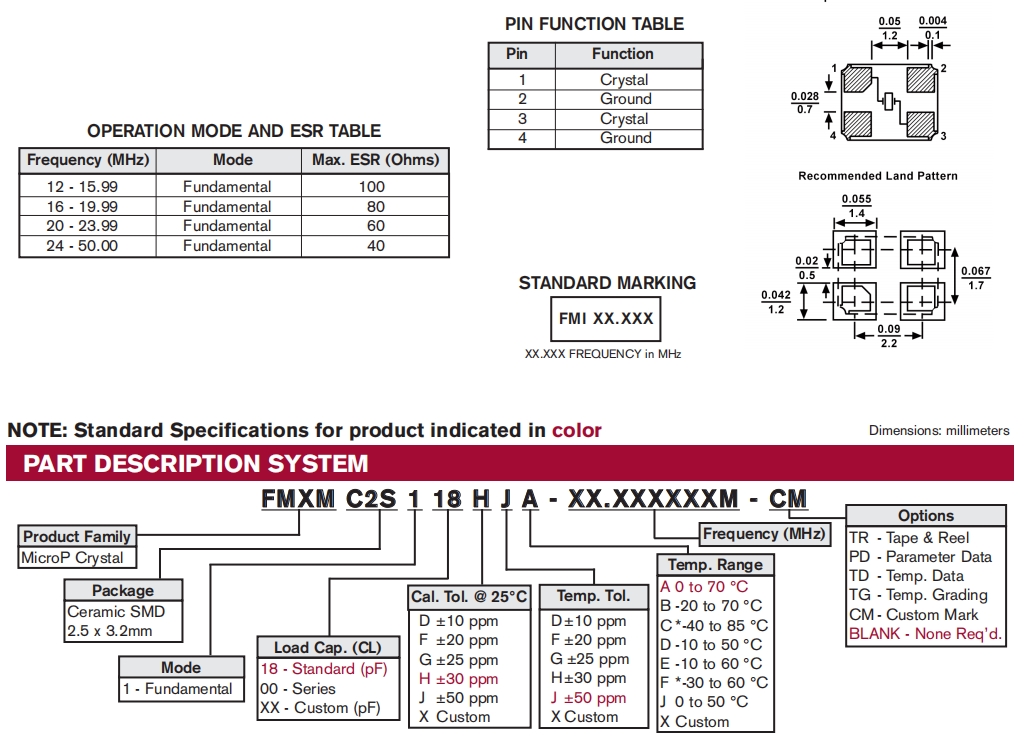

| Operation Mode | See Operation Mode and ESR Table | ||||||||||||||
| Load Capacitance (CL) | 18 pF Std., 6 - 60 pF and Series available | ||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std. (See Cal. Tol. for Options) | ||||||||||||||
| Temperature Tolerance | ±50 ppm Std. (See Temp. Tol. for Options) | ||||||||||||||
| Operating Temperature | 0 to +70°C Std. (See Temp. Range for Options) | ||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | ||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||
| Shunt Capacitance (C0) | 7 pF max. | ||||||||||||||
| Drive Level | 10 µWtypical, 300 µW max | ||||||||||||||
| Aging @ 25°C | ±5 ppm per year max. | ||||||||||||||
| Insulation Resistance | 500MΩ min. at 100V DC±15V | ||||||||||||||
| Reflow Conditions | 260°C ±10°C for 10sec max., 2 reflows max. |
美国FMI晶振,FMXMC3S-120FFC-50.000000M-CM,50MHZ,5032mm 尺寸图
