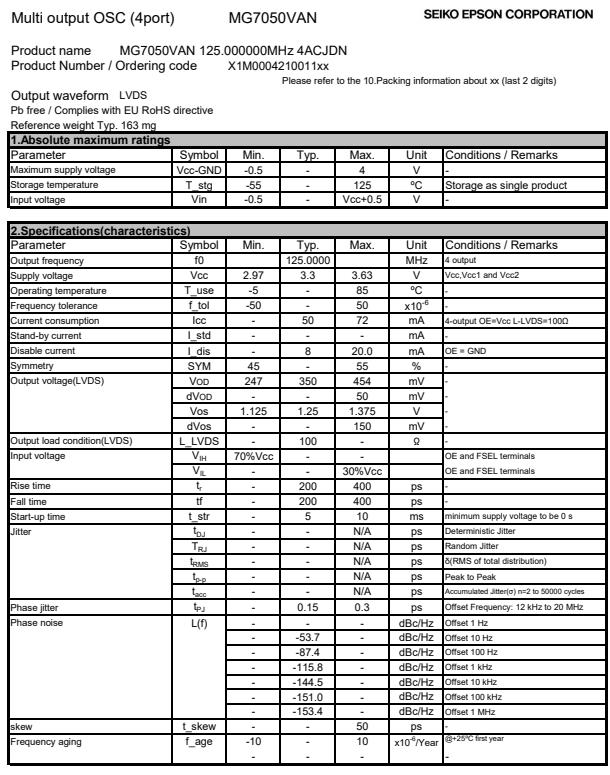

编码X1M000421001100是一款7050mm的差分晶振适合于智能电表时钟模块，爱普生公司成立至今已有几十年的发展，凭着自身的努力与拼搏，拥有先进的生产技术和高端的生产设备，通过自身的努力不断为社会创造更大的价值，以实现自我价值的最大化，通过不断打磨自身的产品，爱普生晶振很高兴推出了的这款MG7050VAN晶振，编码X1M000421001100，频率125.000000兆赫，输出WaveLVDS，电源电压2.97 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.60 mm，操作温度-5至+85°C，频率公差±50ppm，额外的OptionsN /输出OSC(4端口)，具有非常高的稳定性，低抖动，低电压的特点,非常适用于对设计面积敏感的智能电表时钟模块穿戴设备设计,这款微型的低电压有源晶振,具有优良的耐热性与耐环境特性,使得其成为智能电表时钟模块智能穿戴设备时钟的最佳之选。
 Product Number
|
 Model
|
 Frequency
|
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
 Freq. Tol.
|
| X1M000431000800 | MG7050HAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL | 2.970 to 3.630 V | -5 to 85 °C | +/-50 ppm |
| X1M000431000900 | MG7050HAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL | 2.970 to 3.630 V | -20 to 70 °C | +/-50 ppm |
| X1M000431001000 | MG7050HAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL | 2.970 to 3.630 V | -20 to 70 °C | +/-50 ppm |
| X1M000431001100 | MG7050HAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | HCSL | 2.970 to 3.630 V | -20 to 70 °C | +/-50 ppm |
| Product Number00 |
 Model
|
 Frequency
|
 LxWxH
|
 Output Wave
|
 Supply Voltage
|
 Ope Temperature
|
 Freq. Tol.
|
 X1M000421000200
|
MG7050VAN | 212.500000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | 0 to 70 °C | +/-50 ppm |
| X1M000421000300 | MG7050VAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | 0 to 70 °C | +/-50 ppm |
| X1M000421000400 | MG7050VAN | 125.000000 MHz |
7050晶振 |
LVDS | 2.375 to 2.625 V | -20 to 70 °C | +/-50 ppm |
| X1M000421000500 | MG7050VAN | 644.531250 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.375 to 2.625 V | -20 to 70 °C | +/-50 ppm |
| X1M000421000600 | MG7050VAN | 322.265625 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.375 to 2.625 V | -20 to 70 °C | +/-50 ppm |
| X1M000421000700 | MG7050VAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C | +/-100 ppm |
| X1M000421000800 | MG7050VAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C | +/-50 ppm |
| X1M000421000900 | MG7050VAN | 100.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C | +/-50 ppm |
| X1M000421001000 | MG7050VAN | 125.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C | +/-50 ppm |
| X1M000421001100 | MG7050VAN | 125.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C | +/-50 ppm |
| X1M000421001200 | MG7050VAN | 156.250000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C | +/-50 ppm |
| X1M000421001300 | MG7050VAN | 200.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C | +/-50 ppm |
| X1M000421001400 | MG7050VAN | 200.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | -5 to 85 °C | +/-50 ppm |
| X1M000421001500 | MG7050VAN | 322.265625 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.970 to 3.630 V | 0 to 70 °C | +/-50 ppm |
| X1M000421001600 | MG7050VAN | 125.000000 MHz | 7.00 x 5.00 x 1.60 mm | LVDS | 2.375 to 2.625 V | -5 to 85 °C | +/-50 ppm |
比起普通的晶体谐振器,有源晶振技术要求更高,起振性能更稳定,一般都是用在高端的产品身上,大致分为普通振荡器SPXO，TCXO温补晶振TCXO，VCXO压控晶振，VC-TCXO压控温补晶振，OCXO恒温晶振，差分晶振等。
