OC3-T-30000X-H-C-D-3-R-X,OC3路由器晶振,Wi2wi石英振荡器

频率：30MHZ

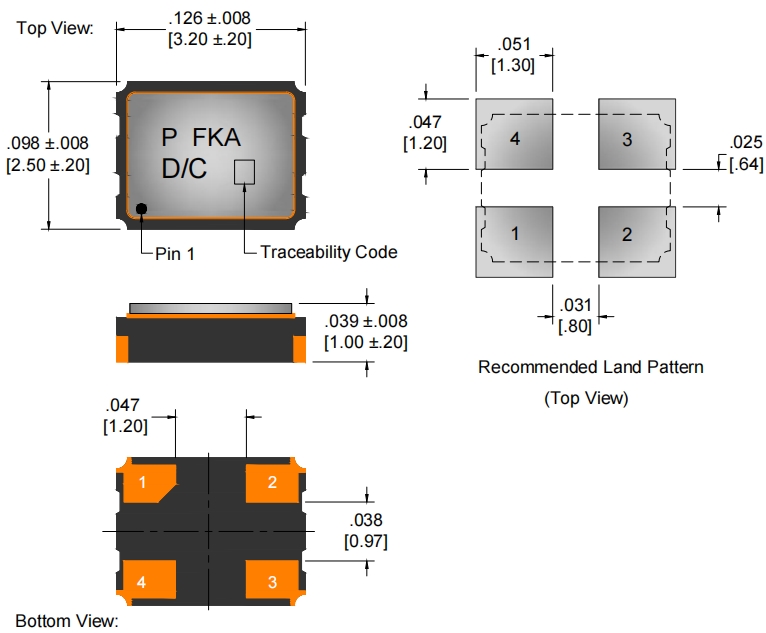

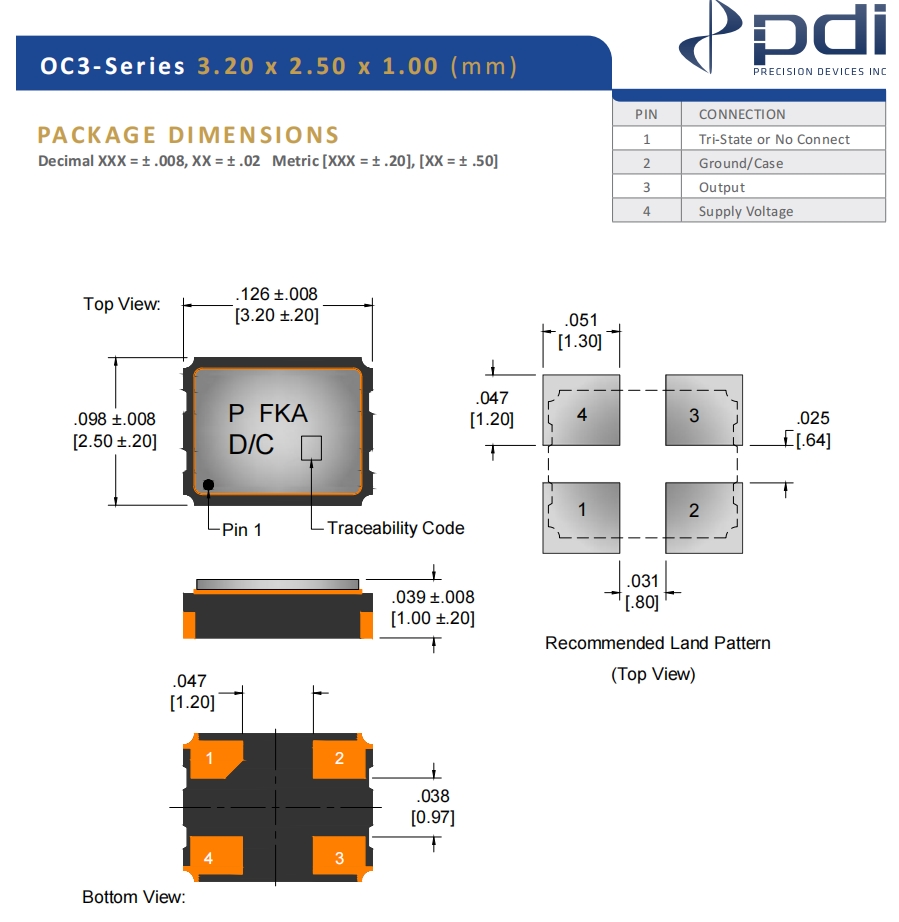

尺寸：3.2x2.5mm

OC3-T-30000X-H-C-D-3-R-X,OC3路由器晶振,Wi2wi石英振荡器，尺寸3.2x2.5mm，频率30MHZ，输出逻辑HCMOS，电压3.3V，欧美有源振荡器，威尔威有源晶振，石英振荡子，有源贴片晶振，有源石英振荡器，3225mm有源晶振，OSC贴片振荡器，石英晶体振荡器，路由器有源晶振，测试设备有源晶振，多媒体设备有源晶振，室外基站有源晶振，北斗模块有源晶振，低抖动有源晶振，低功耗有源晶振，低电压有源晶振，低耗能有源晶振，低相位有源晶振，低相噪有源晶振，具有低电压低耗能的特点。

OSC晶振产品可满足不同应用程序的需求，适用于路由器，测试设备，多媒体设备，室外基站，北斗模块等应用。OC3-T-30000X-H-C-D-3-R-X,OC3路由器晶振,Wi2wi石英振荡器.

订购热线：0755-29952551

LH-1

OSC晶振产品可满足不同应用程序的需求，适用于路由器，测试设备，多媒体设备，室外基站，北斗模块等应用。OC3-T-30000X-H-C-D-3-R-X,OC3路由器晶振,Wi2wi石英振荡器. LH-2

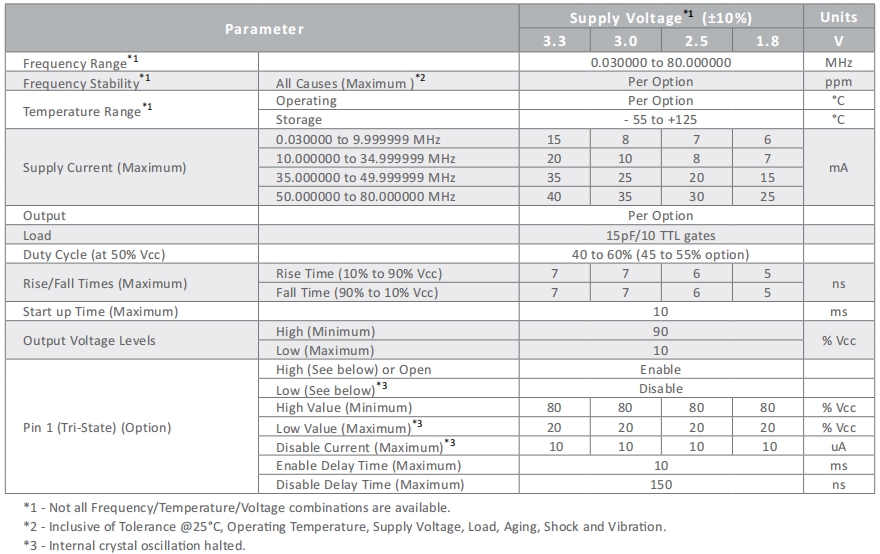

OC3-T-30000X-H-C-D-3-R-X,OC3路由器晶振,Wi2wi石英振荡器 参数表

Parameter		Supply Voltage*1 ( ±10%)				Units
		3.3	3.0	2.5	1.8	V
Frequency Range*1		30.000000				MHz
Frequency Stability*1	All Causes (Maximum )*2	Per Option				ppm
Temperature Range*1	Operating	Per Option				°C
	Storage	- 55 to +125				°C
Supply Current (Maximum)	0.030000 to 9.999999 MHz	15	8	7	6	mA
	10.000000 to 34.999999 MHz	20	10	8	7
	35.000000 to 49.999999 MHz	35	25	20	15
	50.000000 to 80.000000 MHz	40	35	30	25
Output		Per Option
Load		15pF/10 TTL gates
Duty Cycle (at 50% Vcc)		40 to 60% (45 to 55% option)
Rise/Fall Times (Maximum)	Rise Time (10% to 90% Vcc)	7	7	6	5	ns
	Fall Time (90% to 10% Vcc)	7	7	6	5
Start up Time (Maximum)		10				ms
Output Voltage Levels	High (Minimum)	90				% Vcc
	Low (Maximum)	10
Pin 1 (Tri-State) (Option)	High (See below) or Open	Enable
	Low (See below) *3	Disable
	High Value (Minimum)	80	80	80	80	% Vcc
	Low Value (Maximum)*3	20	20	20	20	% Vcc
	Disable Current (Maximum)*3	10	10	10	10	uA
	Enable Delay Time (Maximum)	10				ms
	Disable Delay Time (Maximum)	150				ns
