SG2520EGN差分振荡器,EPSON晶振,X1G0058810002,6G无线晶振
prevnext

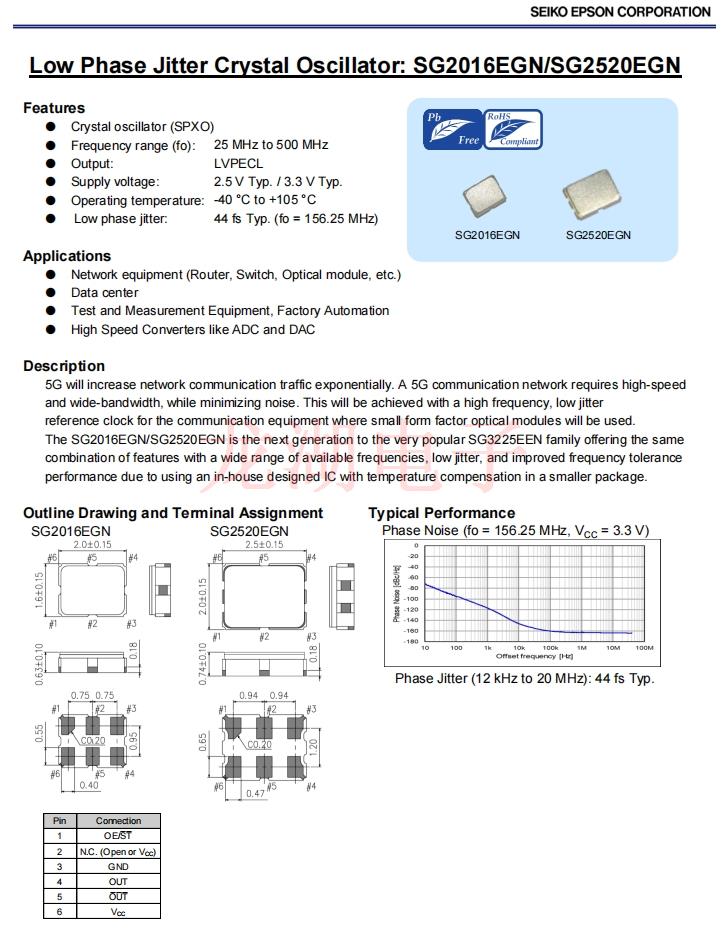

SG2520EGN差分振荡器,EPSON晶振,X1G0058810002,6G无线晶振

频率：156.25MHZ

尺寸：2.5*2.0mm

SG2520EGN差分振荡器,EPSON晶振,X1G0058810002,6G无线晶振，尺寸2.5*2.0mm,频率156.25MHZ，OSC振荡器，石英差分晶振，低抖动振荡器，差分贴片晶振，低相位差分振荡器，SPXO晶体振荡器，5G将使网络通信流量呈指数级增长。5G/6G通信网络要求高速宽频带，同时最大限度地减少噪音。这将实现与高频率，低抖动用于通信设备的参考时钟，其中将使用小尺寸光模块。SG2016EGN/SG2520EGN是非常受欢迎的SG3225EEN系列的下一代产品，提供相同的功能具有广泛的可用频率范围，低抖动和改进的频率容限的功能组合由于在更小的封装中使用了带有温度补偿的内部设计IC，因此性能更好。

有源晶振产品主要应用：网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC等领域.SG2520EGN差分振荡器,EPSON晶振,X1G0058810002,6G无线晶振.

订购热线：0755-29952551
QQ咨询 财富通

Abracon-2

LH-1

SG2520EGN差分振荡器,EPSON晶振,X1G0058810002,6G无线晶振，尺寸2.5*2.0mm,频率156.25MHZ，OSC振荡器，石英差分晶振，低抖动振荡器，差分贴片晶振，低相位差分振荡器，SPXO晶体振荡器，5G将使网络通信流量呈指数级增长。5G/6G通信网络要求高速宽频带，同时最大限度地减少噪音。这将实现与高频率，低抖动用于通信设备的参考时钟，其中将使用小尺寸光模块。SG2016EGN/SG2520EGN是非常受欢迎的SG3225EEN系列的下一代产品，提供相同的功能具有广泛的可用频率范围，低抖动和改进的频率容限的功能组合由于在更小的封装中使用了带有温度补偿的内部设计IC，因此性能更好。

有源晶振产品主要应用：网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC等领域.SG2520EGN差分振荡器,EPSON晶振,X1G0058810002,6G无线晶振.

LH-2

SG2520EGN差分振荡器,EPSON晶振,X1G0058810002,6G无线晶振   参数表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.3 - 4.0 V
Input voltage Vin -0.3 - VCC + 0.5 V OE/    terminal
Storage temperature range T_stg -55 - +125 °C
[ 3 ] Operating Range
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 2.375 2.5 2.625 V Suffix: D
3.135 3.3 3.465 V Suffix: C
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 °C Suffix: G
-40 +25 +105 °C Suffix: H
ECL load condition L_ECL 50 Ω Terminated to VCC - 2.0 V
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo

156.25 MHz
Frequency tolerance *2 f_tol -25 - +25 ×10-6 Suffix: D
-50 - +50 ×10-6 Suffix: J
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 % VCC
Current consumption ICC - - 60 mA
Disable current I_dis - - 35 mA OE = GND
Stand-by current I_std - - 30 μA      = GND, T_use Max. = +85 °C
- - 60 μA      = GND, T_use Max. = +105 °C
Rise time / Fall time tr / tf - - 0.35 ns 20 % - 80 % of (VOH - VOL)
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOH VCC - 1.1 - - V DC level
VOL - - VCC - 1.5 V
Differential swing VSW 800 - 2 000 mV
Input voltage VIH 70 % VCC - - V OE/    terminal
VIL - - 30 % VCC V
Output disable time (OE) tstp_oe - - 100 ns Measured from the time OE
pin crosses 30 % VCC
Output disable time (ST) tstp_st - - 100 ns Measured from the time
pin crosses 30 % VCC
Output enable time (OE) tsta_oe - - 500 ns Measured from the time OE
pin crosses 70 % VCC
Output enable time (ST) tsta_st - - 10 ms Measured from the time
pin crosses 70 % VCC
Phase jitter
Offset frequency
   fo < 50 MHz: 12 kHz to 5 MHz
   fo ≥ 50 MHz: 12 kHz to 20 MHz 		tPJ - - 250 fs fo < 100 MHz
- - 90 fs 100 MHz ≤ fo ≤ 156 MHz
- - 70 fs 156 MHz < fo ≤ 212 MHz
- - 60 fs 212 MHz < fo ≤ 391 MHz
- - 50 fs fo > 391 MHz
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Junction temperature Tj - - +140 °C
Junction to case θjc - 114 - °C/W SG2016EGN
- 122 - °C/W SG2520EGN
Junction to ambient θja - 243 - °C/W SG2016EGN
- 155 - °C/W SG2520EGN
LH-3Abracon-1

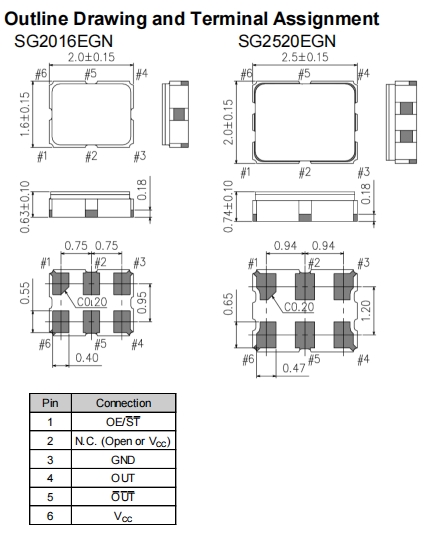

SG2520EGN差分振荡器,EPSON晶振,X1G0058810002,6G无线晶振       尺寸图SG2016EGN SG2520EGN

产品特性：

石英晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:LVPECL

供电电压:2.5 V/ 3.3V类型

工作温度:-40℃~+105℃

低相位抖动:44 fs(fo = 156.25MHz)SG2016EGN SG2520EGN 1
