频率：100MHZ
尺寸：3.2*2.5mm
日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振，尺寸为3.2*2.5mm，频率100MHZ，输出逻辑LVPECL，LVPECL差分输出晶振，差分贴片晶振，日本电波差分晶振，六脚贴片差分晶振，低电压差分振荡器，低抖动差分晶振，低耗能差分晶振，低相噪差分晶振，汽车应用差分晶振，6G基站差分晶振，仪器设备差分晶振，6G光模块差分晶振，无线网络差分振荡器，网络设备专用差分晶振，小尺寸差分晶振，OSC差分晶振，有源差分晶振.
OSC晶振产品主要适用于6G兼容设备、基站、光网络单元、SDH/SONET设备，低端路由器、以太网、光收发器，汽车音响等领域。日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振.
日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振，尺寸为3.2*2.5mm，频率100MHZ，输出逻辑LVPECL，LVPECL差分输出晶振，差分贴片晶振，日本电波差分晶振，六脚贴片差分晶振，低电压差分振荡器，低抖动差分晶振，低耗能差分晶振，低相噪差分晶振，汽车应用差分晶振，6G基站差分晶振，仪器设备差分晶振，6G光模块差分晶振，无线网络差分振荡器，网络设备专用差分晶振，小尺寸差分晶振，OSC差分晶振，有源差分晶振.
OSC晶振产品主要适用于6G兼容设备、基站、光网络单元、SDH/SONET设备，低端路由器、以太网、光收发器，汽车音响等领域。日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振.

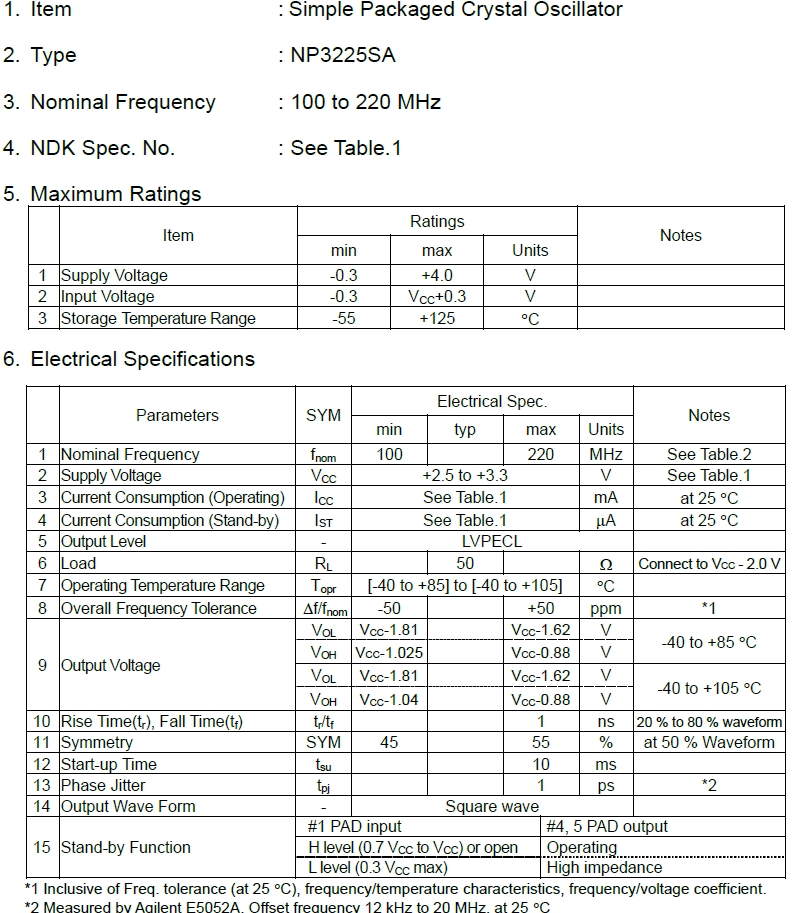

日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振 参数表
| Item | Ratings | Notes | |||||||||||||||||||
| min | max | Units | |||||||||||||||||||
| 1 | Supply Voltage | -0.3 | +4.0 | V | |||||||||||||||||
| 2 | Input Voltage | -0.3 | VCC+0.3 | V | |||||||||||||||||
| 3 | Storage Temperature Range | -55 | +125 | 。C | |||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | ||||||||||||||||||
| min | typ | max | Units | ||||||||||||||||||
| 1 | Nominal Frequency | fnom |
|
100 |
|
MHz | See Table.2 | ||||||||||||||
| 2 | Supply Voltage | VCC | +2.5 to +3.3 | V | See Table.1 | ||||||||||||||||
| 3 | Current Consumption (Operating) | ICC | See Table.1 | mA | at 25 。C | ||||||||||||||||
| 4 | Current Consumption (Stand-by) | IST | See Table.1 | μA | at 25 。C | ||||||||||||||||
| 5 | Output Level | - | LVPECL | ||||||||||||||||||
| 6 | Load | RL | 50 | Ω | Connect to VCC - 2.0 V | ||||||||||||||||
| 7 | Operating Temperature Range | Topr | [-40 to +85] to [-40 to +105] | 。C | |||||||||||||||||
| 8 | Overall Frequency Tolerance | Δf/fnom | -50 | +50 | ppm | *1 | |||||||||||||||
| 9 | Output Voltage | VOL | VCC- 1.81 | VCC- 1.62 | V | -40 to +85 。C | |||||||||||||||
| VOH | VCC- 1.025 | VCC-0.88 | V | ||||||||||||||||||
| VOL | VCC- 1.81 | VCC- 1.62 | V | -40 to +105 。C | |||||||||||||||||
| VOH | VCC- 1.04 | VCC-0.88 | V | ||||||||||||||||||
| 10 | Rise Time(tr), Fall Time(tf) | tr/tf | 1 | ns | 20 % to 80 % waveform | ||||||||||||||||
| 11 | Symmetry | SYM | 45 | 55 | % | at 50 % Waveform | |||||||||||||||
| 12 | Start-up Time | tsu | 10 | ms | |||||||||||||||||
| 13 | Phase Jitter | tpj | 1 | ps | *2 | ||||||||||||||||
| 14 | Output Wave Form | - | Square wave | ||||||||||||||||||
| 15 | Stand-by Function | #1 PAD input | #4, 5 PAD output | ||||||||||||||||||
| H level (0.7 VCC to VCC) or open | Operating | ||||||||||||||||||||
| L level (0.3 VCC max) | High impedance | ||||||||||||||||||||

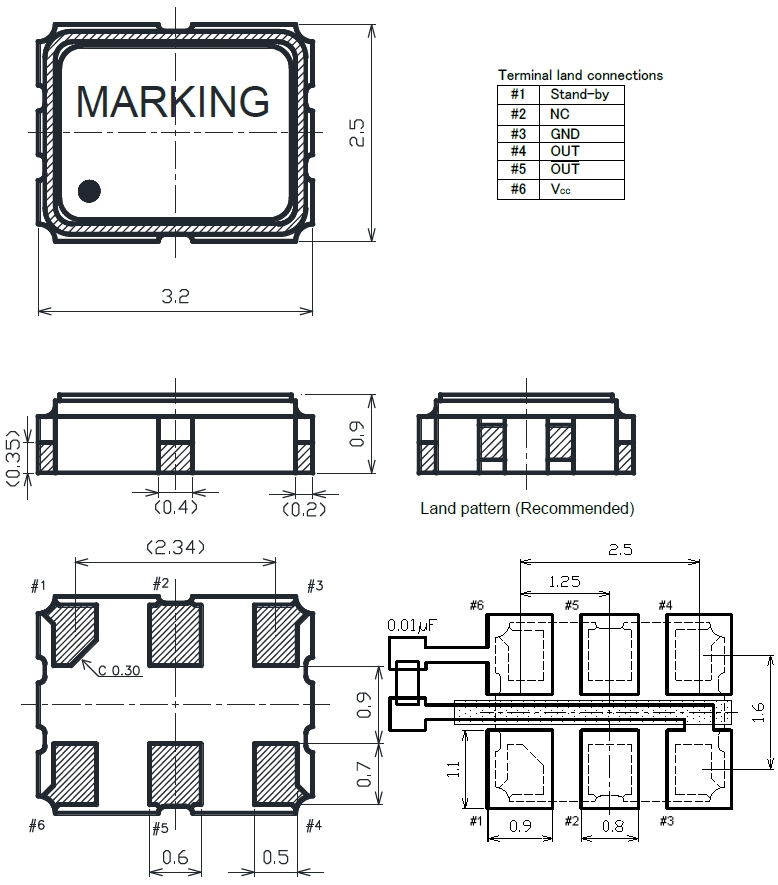

日本NDK差分晶振,NP3225SA-100MHZ-NSC5189A,6G放大器晶振 尺寸图

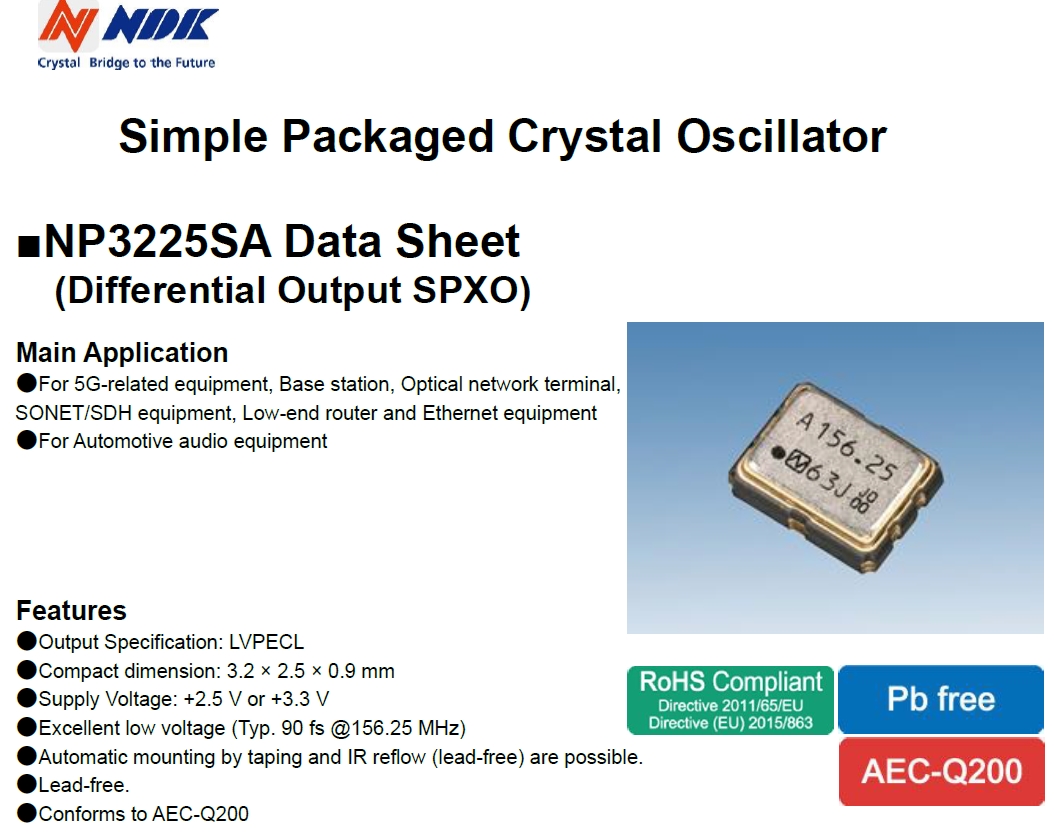

产品特性：
LVPECL差分输出SPXO有源晶振
紧凑型:3.2 x 2.5 x 0.9毫米
电源电压:+2.5V或者+3.3V
低相位抖动:典型。156.25 MHz时90fs
通过缠绕自动安装和IR回流(无铅)是可能的
符合AEC-Q100/200
