频率：100MHZ
尺寸：2.5*2.0mm

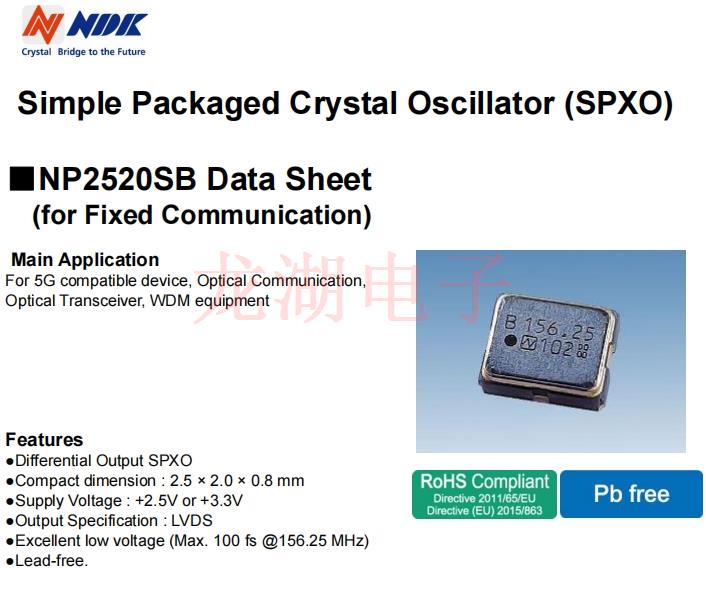

NDK差分振荡器,6G收发器晶振,NP2520SB-100MHZ-NSC5301B，尺寸为2.5*2.0mm，频率为100MHZ，支持输出LVDS，LVDS差分输出晶振，LVDS差分振荡器，差分贴片晶振，日本电波差分晶振，差分晶体振荡器，OSC差分石英晶振，有源差分晶振，低功耗差分晶振，低电压差分振荡器，低抖动差分晶振，通讯差分晶振，光通信差分晶振，光收发器差分晶振，6G模块差分晶振，光通讯差分信号输出LVDS，具备轻薄型，低电压低相位的特征.
差分晶振产品应用领域十分广泛，其中包含5G兼容设备，光通信、光收发器，WDM设备，通信设备，6G模块,智能产品等领域。NDK差分振荡器,6G收发器晶振,NP2520SB-100MHZ-NSC5301B.
NDK差分振荡器,6G收发器晶振,NP2520SB-100MHZ-NSC5301B，尺寸为2.5*2.0mm，频率为100MHZ，支持输出LVDS，LVDS差分输出晶振，LVDS差分振荡器，差分贴片晶振，日本电波差分晶振，差分晶体振荡器，OSC差分石英晶振，有源差分晶振，低功耗差分晶振，低电压差分振荡器，低抖动差分晶振，通讯差分晶振，光通信差分晶振，光收发器差分晶振，6G模块差分晶振，光通讯差分信号输出LVDS，具备轻薄型，低电压低相位的特征.
差分晶振产品应用领域十分广泛，其中包含5G兼容设备，光通信、光收发器，WDM设备，通信设备，6G模块,智能产品等领域。NDK差分振荡器,6G收发器晶振,NP2520SB-100MHZ-NSC5301B.
NDK差分振荡器,6G收发器晶振,NP2520SB-100MHZ-NSC5301B 参数表
| Item | Ratings | Notes | ||||||||||||||||||||
| min | max | Units | ||||||||||||||||||||
| Supply Voltage | -0.3 | +4.0 | V | |||||||||||||||||||
| Input Voltage | -0.3 | VCC+0.3 | V | |||||||||||||||||||
| Storage Temperature Range | -55 | +125 | 。C | |||||||||||||||||||
| Parameters | SYM | Electrical Spec. | Notes | |||||||||||||||||||
| min | typ | max | Units | |||||||||||||||||||
| Nominal Frequency | fnom | 100 |
|
|
MHz | |||||||||||||||||
| Supply Voltage | VCC | +2.5 to +3.3 | V | See Table.1 | ||||||||||||||||||
| Current Consumption (Operating) | ICC | 40 | mA | at 25 。C | ||||||||||||||||||
| Current Consumption (Stand-by) | IST | 30 | μA | at 25 。C | ||||||||||||||||||
| Output Level | LVDS | |||||||||||||||||||||
| Load Capacitance | RL | 100 | Ω | Out-Complementary Out | ||||||||||||||||||
| Operating Temperature Range | Topr | -40 | +85 | 。C | ||||||||||||||||||
| Overall Frequency Tolerance | Δf/fnom | -50 | +50 | ppm | *1 | |||||||||||||||||
| Output Voltage | VOD | +0.247 | +0.454 | V | ||||||||||||||||||
| ΔVOD | 50 | mV | ||||||||||||||||||||
| VOS | +1.125 | +1.375 | V | |||||||||||||||||||
| ΔVOS | 50 | mV | ||||||||||||||||||||
| Rise Time(tr), Fall Time(tf) | tr/tf | 0.4 | ns | 20 % to 80 % Waveform | ||||||||||||||||||
| Symmetry | SYM | 45 | 55 | % | at 50 % waveform | |||||||||||||||||
| Start-up Time | tsu | 10 | ms | |||||||||||||||||||
| Phase Jitter | tpj | 100 | fs | *2 | ||||||||||||||||||
| Output Wave Form | - | Square wave | ||||||||||||||||||||
| Stand-by Function | #1 PAD input | #4, 5 PAD output | ||||||||||||||||||||
| H level (0.7 VCC to VCC) or open | Operating | |||||||||||||||||||||
| L level (0.3 VCC max) | High impedance | |||||||||||||||||||||

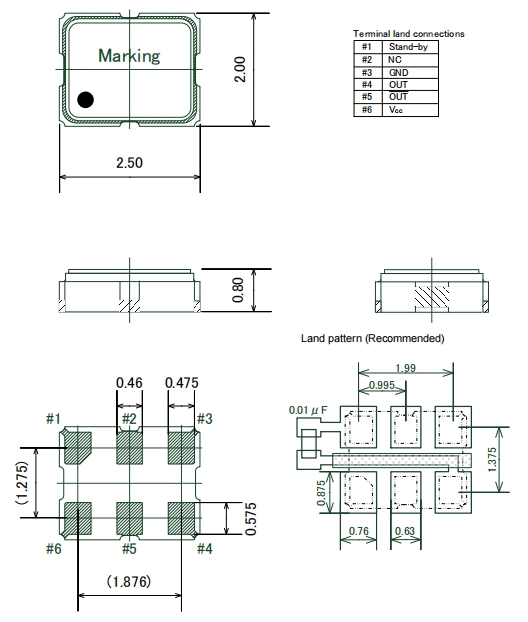

NDK差分振荡器,6G收发器晶振,NP2520SB-100MHZ-NSC5301B 尺寸图
有源晶振产品特性：
