LFXTAL085859,欧美进口晶振,IQD代理商,IQXC-42

频率：50 MHz

尺寸：2.0*1.6mm

LFXTAL085859,欧美进口晶振,IQD代理商,IQXC-42,英国进口晶振,高频晶振,除颤仪晶振,超小晶振,编码LFXTAL085859,型号IQXC-42,频率50Mhz,10ppm精度,8pF负载电容,无铅晶振,满足无铅焊接以及高温回流温度曲线要求,符合AEC-Q200标准

订购热线：0755-29952551

LH-1

LH-2

Abracon-1

LFXTAL085859,欧美进口晶振,IQD代理商,IQXC-42

原厂编码	LFXTAL085859
频率	50MHz
厂家	IQD晶振
型号	IQXC-42
频率偏差	±10ppm
负载电容	8pF
工作温度	-40°C至125°C

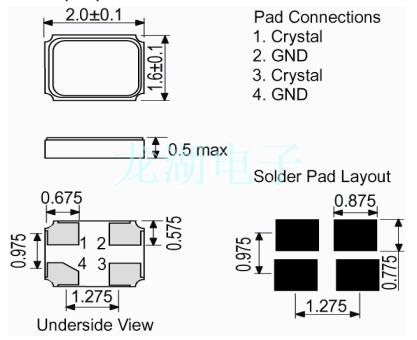

尺寸	2.0*1.6mm

LH-3

ECS-1

LFXTAL085859,欧美进口晶振,IQD代理商,IQXC-42

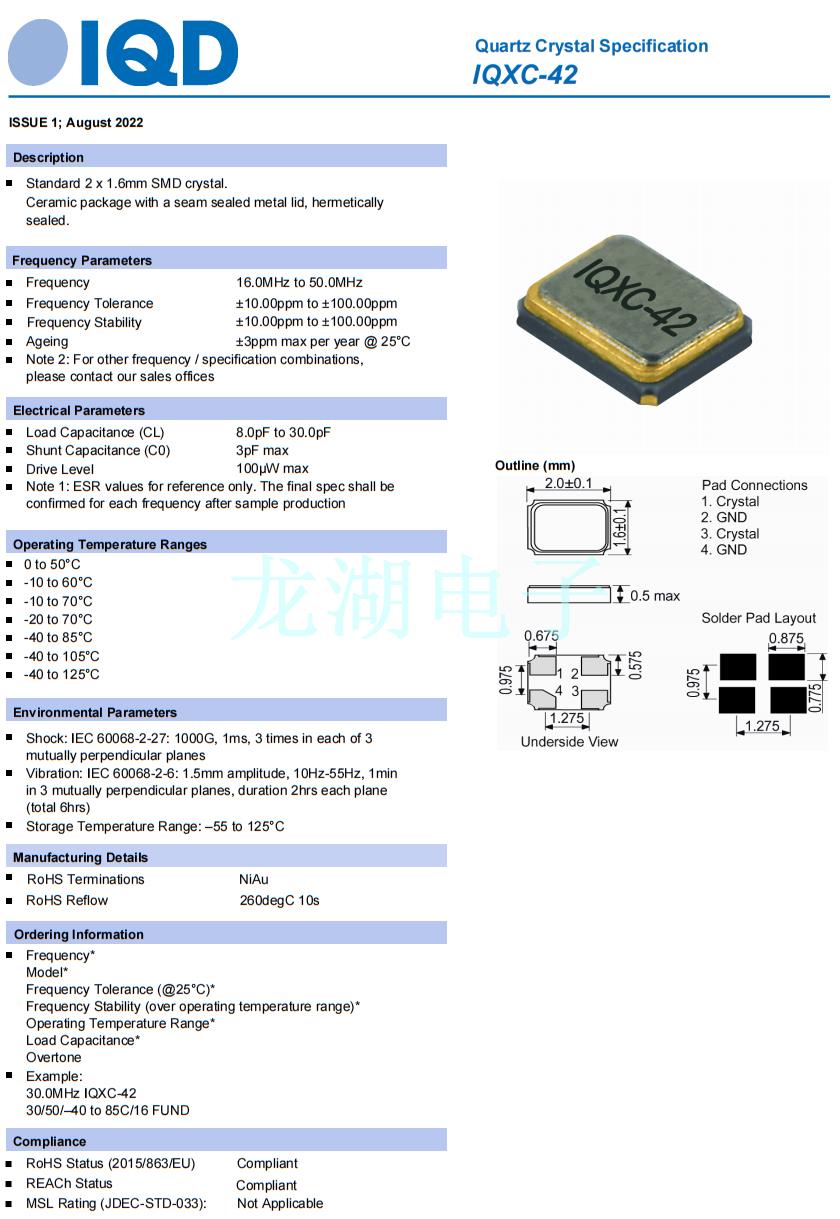

IQXC-42(1)

Mfr Part #	Mfr	Series	Frequency	Frequency Tolerance	Load Capacitance
LFXTAL069494REEL	IQD Crystal	IQXC-42	25 MHz	±15ppm	10pF
LFXTAL059627REEL	IQD Crystal	IQXC-42	38.4 MHz	±15ppm	10pF
LFXTAL082135CUTT	IQD Crystal	IQXC-42	48 MHz	±10ppm	8pF
LFXTAL085845	IQD Crystal	IQXC-42	25 MHz	±10ppm	8pF
LFXTAL085842	IQD Crystal	IQXC-42	16 MHz	±10ppm	8pF
LFXTAL085857	IQD Crystal	IQXC-42	40 MHz	±10ppm	10pF
LFXTAL082887RL3K	IQD Crystal	IQXC-42	16 MHz	±10ppm	10pF
LFXTAL085851	IQD Crystal	IQXC-42	32 MHz	±10ppm	10pF
LFXTAL082131RL3K	IQD Crystal	IQXC-42	38.4 MHz	±10ppm	8pF
LFXTAL082128RL3K	IQD Crystal	IQXC-42	30 MHz	±10ppm	8pF
LFXTAL082126RL3K	IQD Crystal	IQXC-42	26 MHz	±10ppm	8pF
LFXTAL082125RL3K	IQD Crystal	IQXC-42	25 MHz	±10ppm	8pF
LFXTAL081781RL3K	IQD Crystal	IQXC-42	16 MHz	±10ppm	8pF
LFXTAL082130RL3K	IQD Crystal	IQXC-42	37.4 MHz	±10ppm	8pF
LFXTAL082129RL3K	IQD Crystal	IQXC-42	32 MHz	±10ppm	8pF
LFXTAL082132RL3K	IQD Crystal	IQXC-42	40 MHz	±10ppm	8pF
LFXTAL059585REEL	IQD Crystal	IQXC-42	20 MHz	±15ppm	10pF
LFXTAL059591REEL	IQD Crystal	IQXC-42	26 MHz	±15ppm	10pF
LFXTAL059596REEL	IQD Crystal	IQXC-42	30 MHz	±15ppm	10pF
LFXTAL059632REEL	IQD Crystal	IQXC-42	40 MHz	±15ppm	10pF
LFXTAL072543REEL	IQD Crystal	IQXC-42	27 MHz	±15ppm	10pF
LFXTAL072546REEL	IQD Crystal	IQXC-42	48 MHz	±15ppm	10pF
LFXTAL078377REEL	IQD Crystal	IQXC-42	26 MHz	±10ppm	12pF
LFXTAL082132REEL	IQD Crystal	IQXC-42	40 MHz	±10ppm	8pF
LFXTAL082127CUTT	IQD Crystal	IQXC-42	27.12 MHz	±10ppm	8pF
LFXTAL082128CUTT	IQD Crystal	IQXC-42	30 MHz	±10ppm	8pF
LFXTAL082126REEL	IQD Crystal	IQXC-42	26 MHz	±10ppm	8pF
LFXTAL082123REEL	IQD Crystal	IQXC-42	24 MHz	±10ppm	8pF
LFXTAL082468CUTT	IQD Crystal	IQXC-42	38.4 MHz	±10ppm	10pF
LFXTAL082131REEL	IQD Crystal	IQXC-42	38.4 MHz	±10ppm	8pF
LFXTAL082125CUTT	IQD Crystal	IQXC-42	25 MHz	±10ppm	8pF
