频率：24.0MHz
尺寸：3.2*2.5mm
FO3HSCBE24.0-T1,FOX石英电子晶振,航空晶振,抗冲击晶振,高温晶振,石英晶体,有源晶振,福克斯石英晶体振荡器,3225石英晶振,四脚贴片晶振,进口晶振,石英振荡器,车载晶振,汽车电子配件晶振,飞机晶振,医疗除颤仪晶振,数控车床晶振,智能家具晶振,机器人晶振,洗衣机晶振,吹风机晶振,数字显示器晶振,车载显示器晶振,

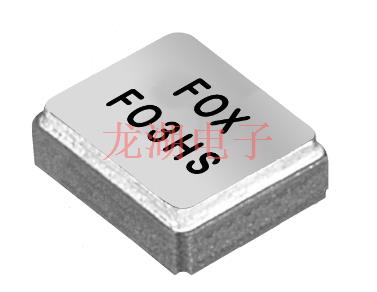

FO3HSCBE24.0-T1,FOX石英电子晶振,航空晶振,抗冲击晶振

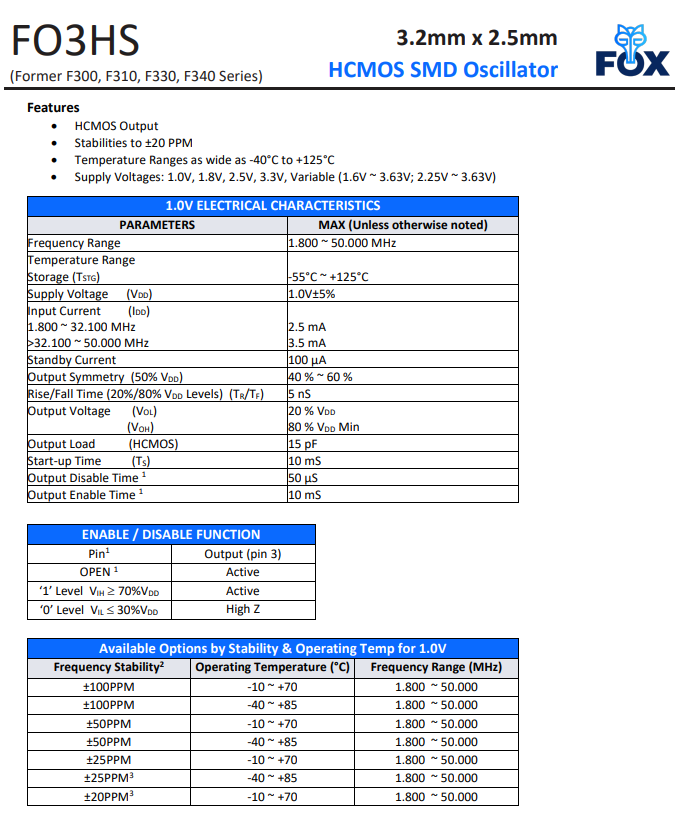

| 原厂编码 | FO3HSCBE24.0-T1 |
| 频率 | 24MHz |
| 厂家 | FOX晶振 |
| 型号 | FO3HS |
| 频率偏差 | ±50ppm |
| 电压 | 3.3V |
| 工作温度 | -10°C至70°C |

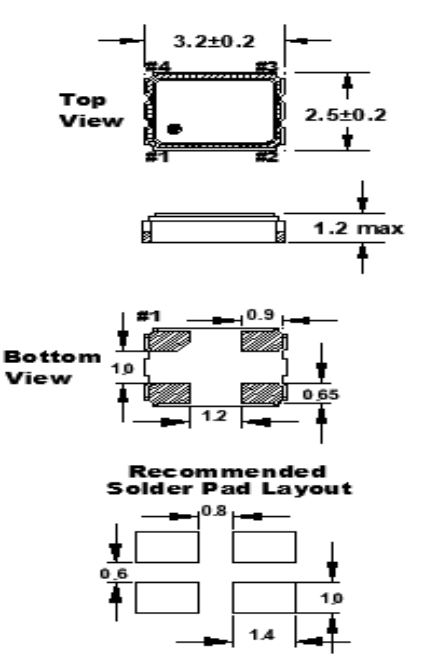

| 尺寸 | 3.2*2.5mm |
FO3HSCBE24.0-T1,FOX石英电子晶振,航空晶振,抗冲击晶振
| 物料编码 | 品牌 | 型号 | 频率 | 电压 | 频率偏差 |
| FB3HDBLM0.032768 | FOX crystal | FB3HD | 32.768 kHz | 3.3V | ±5ppm |
| FO3SLBDM125.0 | FOX crystal | FO3SL | 125 MHz | 3.3V | ±25ppm |
| FO5HACAI16.0-T1 | FOX crystal | FO5HA | 16 MHz | 3.3V | ±100ppm |
| FO5HACAI20.0-T1 | FOX crystal | FO5HA | 20 MHz | 3.3V | ±100ppm |
| FO5HLBAM32.0-T1 | FOX crystal | FO5HL | 32 MHz | 3.3V | ±100ppm |
| FO5HSAAE48.0-T1 | FOX crystal | FO5HS | 48 MHz | 5V | ±100ppm |
| FO5HSCBE10.0-T1 | FOX crystal | FO5HS | 10 MHz | 3.3V | ±50ppm |
| FO5HSCBE12.0-T1 | FOX crystal | FO5HS | 12 MHz | 3.3V | ±50ppm |
| FO5HSCBE16.0-T1 | FOX crystal | FO5HS | 16 MHz | 3.3V | ±50ppm |
| FO5HSCBE24.0-T1 | FOX crystal | FO5HS | 24 MHz | 3.3V | ±50ppm |
| FO5HSCBE25.0-T1 | FOX crystal | FO5HS | 25 MHz | 3.3V | ±50ppm |
| FO5HSCBE27.0-T1 | FOX crystal | FO5HS | 27 MHz | 3.3V | ±50ppm |
| FO5HSCBE33.333-T1 | FOX crystal | FO5HS | 33.333 MHz | 3.3V | ±50ppm |
| FO5HSCBE48.0-T1 | FOX crystal | FO5HS | 48 MHz | 3.3V | ±50ppm |
| FO5HSCBE50.0-T1 | FOX crystal | FO5HS | 50 MHz | 3.3V | ±50ppm |
| FO5HSCBM10.7-T1 | FOX crystal | FO5HS | 10.7 MHz | 3.3V | ±50ppm |
| FO5HSCBM20.0-T1 | FOX crystal | FO5HS | 20 MHz | 3.3V | ±50ppm |
| FO5HSCBM50.0-T1 | FOX crystal | FO5HS | 50 MHz | 3.3V | ±50ppm |
| FO5HSCDE25.0-T1 | FOX crystal | FO5HS | 25 MHz | 3.3V | ±25ppm |
| FO5HSCDM24.576-T1 | FOX crystal | FO5HS | 24.576 MHz | 3.3V | ±25ppm |
| FO5HSCDM26.0-T1 | FOX crystal | FO5HS | 26 MHz | 3.3V | ±25ppm |
| FO5HSCDM27.0-T1 | FOX crystal | FO5HS | 27 MHz | 3.3V | ±25ppm |
| FO5HSCDM33.333333-T1 | FOX crystal | FO5HS | 33.333333 MHz | 3.3V | ±25ppm |
| FO5LSCDM106.25-T1 | FOX crystal | FO5LS | 106.25 MHz | 3.3V | ±25ppm |
| FO5LSJDM150.0-T1 | FOX crystal | FO5LS | 150 MHz | 2.5V | ±25ppm |
| FO5PSCBF50.0-T1 | FOX crystal | FO5PS | 50 MHz | 3.3V | ±50ppm |
| FO5PUBBM50.0 | FOX crystal | FO5PU | 50 MHz | 3.3V | ±50ppm |
| FO5SLCBF16.368-T1 | FOX crystal | FO5SL | 16.368 MHz | 3.3V | ±50ppm |
| FO6HSCBM25.0-T1 | FOX crystal | FO6HS | 25 MHz | 3.3V | ±50ppm |
| FO6HSCBM3.6864-T1 | FOX crystal | FO6HS | 3.6864 MHz | 3.3V | ±50ppm |
| FO7HACAI24.0-T1 | FOX crystal | FO7HA | 24 MHz | 3.3V | ±100ppm |
| FO7HBAAE8.0-T2 | FOX crystal | FO7HB | 8 MHz | 5V | ±100ppm |
| FO7HBAAM19.6608-T1 | FOX crystal | FO7HB | 19.6608 MHz | 5V | ±100ppm |
| FO7HBABE125.0-T1 | FOX crystal | FO7HB | 125 MHz | 5V | ±50ppm |
| FO7HBAEE27.0-T1 | FOX crystal | FO7HB | 27 MHz | 5V | ±20ppm |
| FO7HHAAE1.8432-T1 | FOX crystal | FO7HH | 1.8432 MHz | 5V | ±100ppm |
| FO7HHAAE1.8432-T2 | FOX crystal | FO7HH | 1.8432 MHz | 5V | ±100ppm |
