频率：16MHz

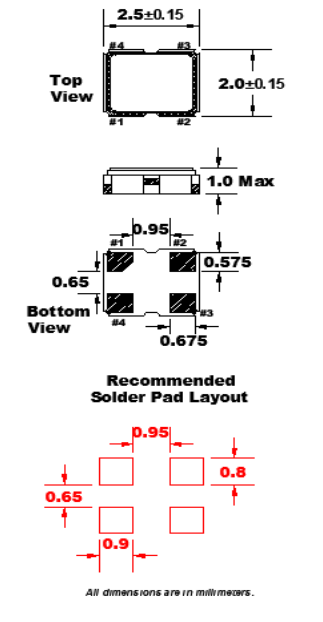

尺寸：2.5*2.0mm

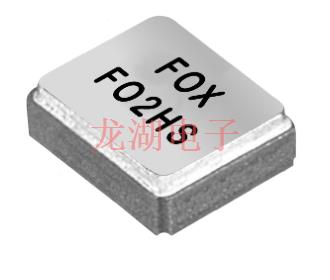

FO2HSBAP16.0-T1,福克斯电子,高频晶振,车载晶振,32.768k,低频晶振,耐热晶振,抗振晶振,高精度晶振,低损耗晶振,低功耗晶振,低频率晶振,高稳定晶振,高性能晶振,石英晶体振荡器,这款福克斯晶振尺寸仅有2520mm,所使用的材料都符合欧盟环保要求.石英不仅有着比陶瓷更好的抗冲击性,石英使用寿命长达10年
FO2HSBAP16.0-T1,福克斯电子,高频晶振,车载晶振,低频晶振,耐热晶振,抗振晶振,高精度晶振,低损耗晶振,低功耗晶振,低频率晶振,高稳定晶振,高性能晶振,石英晶体振荡器,这款福克斯晶振尺寸仅有2520mm,所使用的材料都符合欧盟环保要求.石英不仅有着比陶瓷更好的抗冲击性,石英使用寿命长达10年
FO2HSBAP16.0-T1,福克斯电子,高频晶振,车载晶振
| 原厂编码 | FO2HSBAP16.0-T1 |
| 频率 | 16MHz |
| 厂家 | FOX晶振 |
| 型号 | FO2HS |
| 频率偏差 | ±100ppm |
| 电压 | 3.3V |
| 工作温度 | -40°C至105°C |
| 尺寸 | 2.5*2.0mm |
FO2HSBAP16.0-T1,福克斯电子,高频晶振,车载晶振
| 物料编码 | 品牌 | 型号 | 频率 | 电压 | 频率偏差 |
| FO7HSCAE7.372-T2 | FOX crystal | FO7HS | 7.372 MHz | 3.3V | ±100ppm |
| FO7HSCAE8.0-T1 | FOX crystal | FO7HS | 8 MHz | 3.3V | ±100ppm |
| FO7HSCAF30.0-T1 | FOX crystal | FO7HS | 30 MHz | 3.3V | ±100ppm |
| FO7HSCAF4.096-T1 | FOX crystal | FO7HS | 4.096 MHz | 3.3V | ±100ppm |
| FO7HSCAF60.0-T1 | FOX crystal | FO7HS | 60 MHz | 3.3V | ±100ppm |
| FO7HSCAM10.0-T1 | FOX crystal | FO7HS | 10 MHz | 3.3V | ±100ppm |
| FO7HSCAM10.0-T2 | FOX crystal | FO7HS | 10 MHz | 3.3V | ±100ppm |
| FO7HSCAM14.7456-T1 | FOX crystal | FO7HS | 14.7456 MHz | 3.3V | ±100ppm |
| FO7HSCAM18.432-T1 | FOX crystal | FO7HS | 18.432 MHz | 3.3V | ±100ppm |
| FO7HSCAM18.432-T2 | FOX crystal | FO7HS | 18.432 MHz | 3.3V | ±100ppm |
| FO7HSCAM20.0-T1 | FOX crystal | FO7HS | 20 MHz | 3.3V | ±100ppm |
| FO7HSCAM22.1184-T1 | FOX crystal | FO7HS | 22.1184 MHz | 3.3V | ±100ppm |
| FO7HSCAM24.0-T1 | FOX crystal | FO7HS | 24 MHz | 3.3V | ±100ppm |
| FO7HSCAM24.0-T2 | FOX crystal | FO7HS | 24 MHz | 3.3V | ±100ppm |
| FO7HSCAM25.0-T1 | FOX crystal | FO7HS | 25 MHz | 3.3V | ±100ppm |
| FO7HSCAM25.0-T2 | FOX crystal | FO7HS | 25 MHz | 3.3V | ±100ppm |
| FO7HSCAM3.6864-T1 | FOX crystal | FO7HS | 3.6864 MHz | 3.3V | ±100ppm |
| FO7HSCAM3.6864-T2 | FOX crystal | FO7HS | 3.6864 MHz | 3.3V | ±100ppm |
| FO7HSCAM30.0-T1 | FOX crystal | FO7HS | 30 MHz | 3.3V | ±100ppm |
| FO7HSCAM30.0-T2 | FOX crystal | FO7HS | 30 MHz | 3.3V | ±100ppm |
| FO7HSCAM32.0-T1 | FOX crystal | FO7HS | 32 MHz | 3.3V | ±100ppm |
| FO7HSCAM32.0-T2 | FOX crystal | FO7HS | 32 MHz | 3.3V | ±100ppm |
