频率：12MHz
尺寸：2.5*2.0mm
FC2BAEBDI12.0-T1,福克斯进口石英晶振,高频率晶振,高温晶振,贴片型晶振,12MHz高频晶振,石英材质金属谐振器,计时产品晶振,汽车空调晶振,耐低温晶振,石英无源晶振,飞机晶振,抗抖动晶振,儿童电话手表晶振,加热器晶振,军事设备晶振,航空晶振,智能摄像头晶振,扫地机器人晶振,智能家具晶振,
FC2BAEBDI12.0-T1,福克斯进口石英晶振,高频率晶振,高温晶振
| 原厂编码 | FC2BAEBDI12.0-T1 |
| 频率 | 12MHz |
| 厂家 | FOX晶振 |

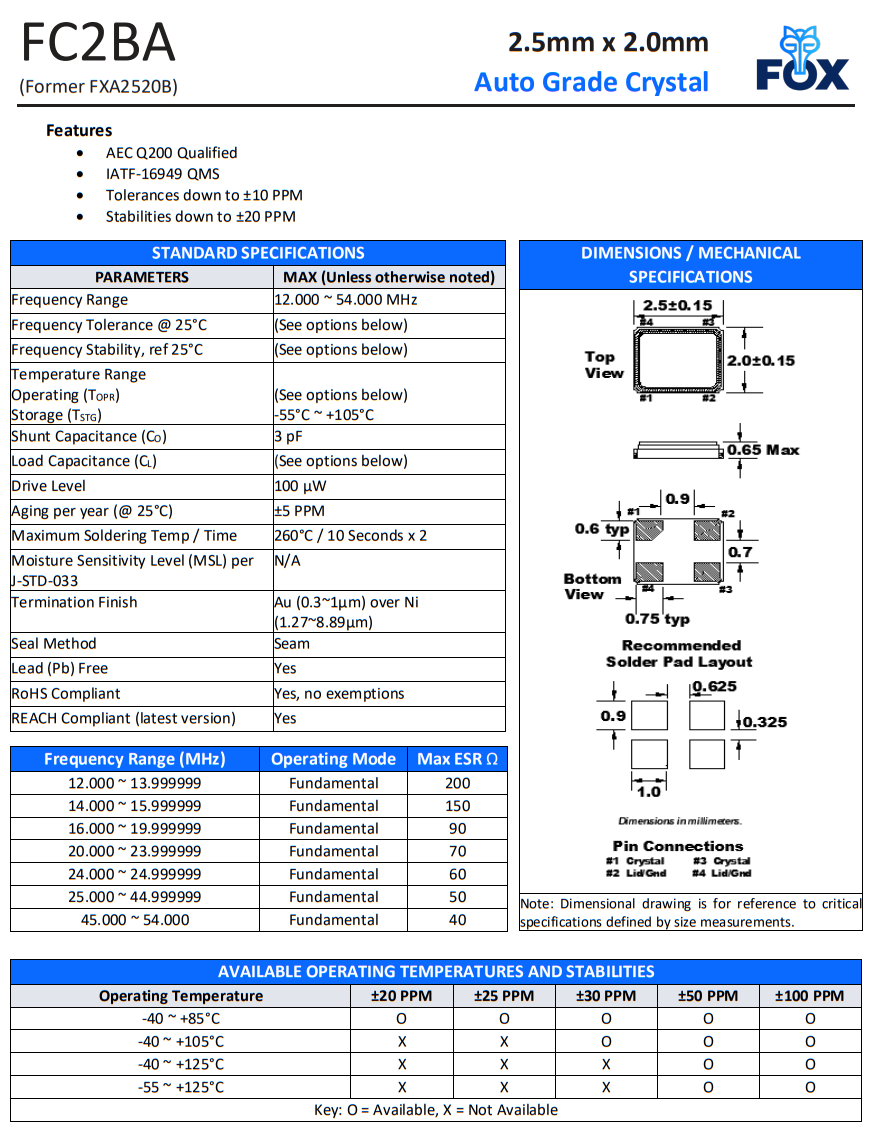

| 型号 | FC2BA |
| 频率偏差 | ±50ppm |
| 负载电容 | 10pF |
| 工作温度 | -40°C至125°C |

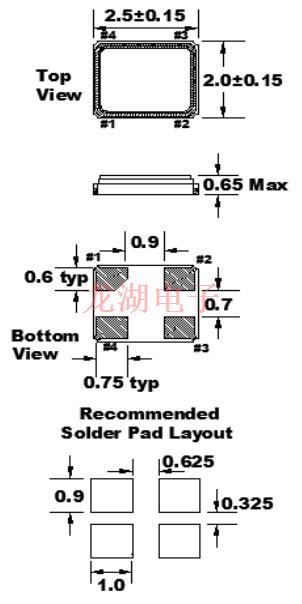

| 尺寸 | 2.5*2.0mm |
FC2BAEBDI12.0-T1,福克斯进口石英晶振,高频率晶振,高温晶振
| 编码 | 品牌 | 型号 | 频率 | 频率偏差 | 频率容差 | 负载电容 |
| FC2BACBEI16.0-T1 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±30ppm | 10 pF |
| FC2BACBEI16.0-T3 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±30ppm | 10 pF |
| FC2BAEBDI12.0-T1 | Fox crystal | FC2BA | 12 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI16.0-T1 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI20.0-T1 | Fox crystal | FC2BA | 20 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI24.0-T1 | Fox crystal | FC2BA | 24 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI25.0-T1 | Fox crystal | FC2BA | 25 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBDI40.0-T1 | Fox crystal | FC2BA | 40 MHz | ±50ppm | ±20ppm | 8 pF |
| FC2BAEBEI12.0-T1 | Fox crystal | FC2BA | 12 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI16.0-T1 | Fox crystal | FC2BA | 16 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI20.0-T1 | Fox crystal | FC2BA | 20 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI24.0-T1 | Fox crystal | FC2BA | 24 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI25.0-T1 | Fox crystal | FC2BA | 25 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBEI40.0-T1 | Fox crystal | FC2BA | 40 MHz | ±50ppm | ±20ppm | 10 pF |
| FC2BAEBGI25.0-T1 | Fox crystal | FC2BA | 25 MHz | ±50ppm | ±20ppm | 12 pF |
