频率：24MHZ
尺寸：2.00x1.60mm
FC1BAEBEI24.0-T1\6G蓝牙晶振\FOX汽车级晶振，尺寸为2.00x1.60mm，频率24MHZ，福克斯进口晶振，FOX石英晶体，无源晶体，四脚贴片晶振，水晶振动子，石英晶体谐振器，石英贴片晶体，SMD无源晶振，小体积贴片晶振，高性能石英晶振，高精度石英晶振，高品质晶振，低损耗晶振，6G蓝牙晶振，通信专用晶振，可穿戴设备晶振，物联网晶振，仪器仪表专用晶振，24MHZ石英晶体，绿色环保晶振，产品具有轻薄型高精度高可靠性能的特点.
贴片晶体产品适合用于范围非常广，比较常用于6G蓝牙，通信，可穿戴设备，物联网，仪器仪表等领域.FC1BAEBEI24.0-T1\6G蓝牙晶振\FOX汽车级晶振.
FC1BAEBEI24.0-T1\6G蓝牙晶振\FOX汽车级晶振，尺寸为2.00x1.60mm，频率24MHZ，福克斯进口晶振，FOX石英晶体，无源晶体，四脚贴片晶振，水晶振动子，石英晶体谐振器，石英贴片晶体，SMD无源晶振，小体积贴片晶振，高性能石英晶振，高精度石英晶振，高品质晶振，低损耗晶振，6G蓝牙晶振，通信专用晶振，可穿戴设备晶振，物联网晶振，仪器仪表专用晶振，24MHZ石英晶体，绿色环保晶振，产品具有轻薄型高精度高可靠性能的特点.
贴片晶体产品适合用于范围非常广，比较常用于6G蓝牙，通信，可穿戴设备，物联网，仪器仪表等领域.FC1BAEBEI24.0-T1\6G蓝牙晶振\FOX汽车级晶振.
FC1BAEBEI24.0-T1\6G蓝牙晶振\FOX汽车级晶振 参数表
| STANDARD SPECIFICATIONS | |||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||
| Frequency Range | 24.000 MHz | ||||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||
| Frequency Stability, ref 25°C | (See options below) | ||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
See options below -55°C ~ +150°C |
||||||||||||
| Shunt Capacitance (CO) | 3 pF | ||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||
| Drive Level | 100 µW | ||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds x 2 | ||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
N/A | ||||||||||||
| Termination Finish |
Au (0.3~1.0µm) over Ni (1.27~8.89µm) |
||||||||||||
| Seal Method | Seam | ||||||||||||
| Lead (Pb) Free | Yes | ||||||||||||
| RoHS Compliant | Yes, no exemptions | ||||||||||||
| REACH Compliant (latest version) | Yes | ||||||||||||

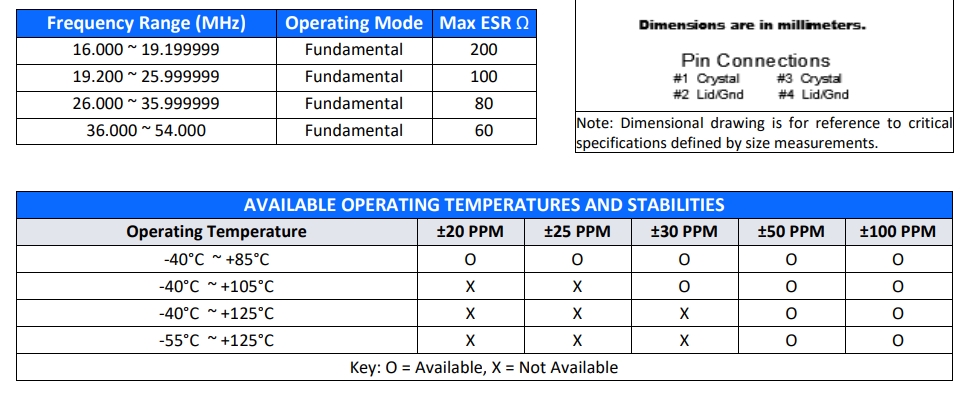

FC1BAEBEI24.0-T1\6G蓝牙晶振\FOX汽车级晶振 尺寸图
石英晶振产品特性：
符合AEC Q200标准
IATF-16949质量管理系统
公差低至10PPM
稳定性低至20PPM
非常低的老化
