频率：32.768KHz
尺寸：8.7x3.7x2.4mm
CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CPFB，编码为：CPFBZ-A2C4-32.768KD12.5，频率为：32.768KHz，工作温度范围：-40℃至+85℃，负载：12.5pF，小体积晶振尺寸：8.7x3.7x2.4mm陶瓷SMD封装，四脚贴片晶振，无源晶振，石英晶振，SMD晶振，音叉晶体，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，高质量，耐热及耐环境等特点。被广泛应用于：通讯设备晶振，无线蓝牙模块，RTC应用，时钟晶振，汽车电子晶振，仪器仪表设备，数字显示等应用。
CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振，产品特点：
•封装是自动化表面安装组装和回流实践的理想选择
•超小型，石英晶体谐振器
•行业标准足迹
•频率：32.768 kHz

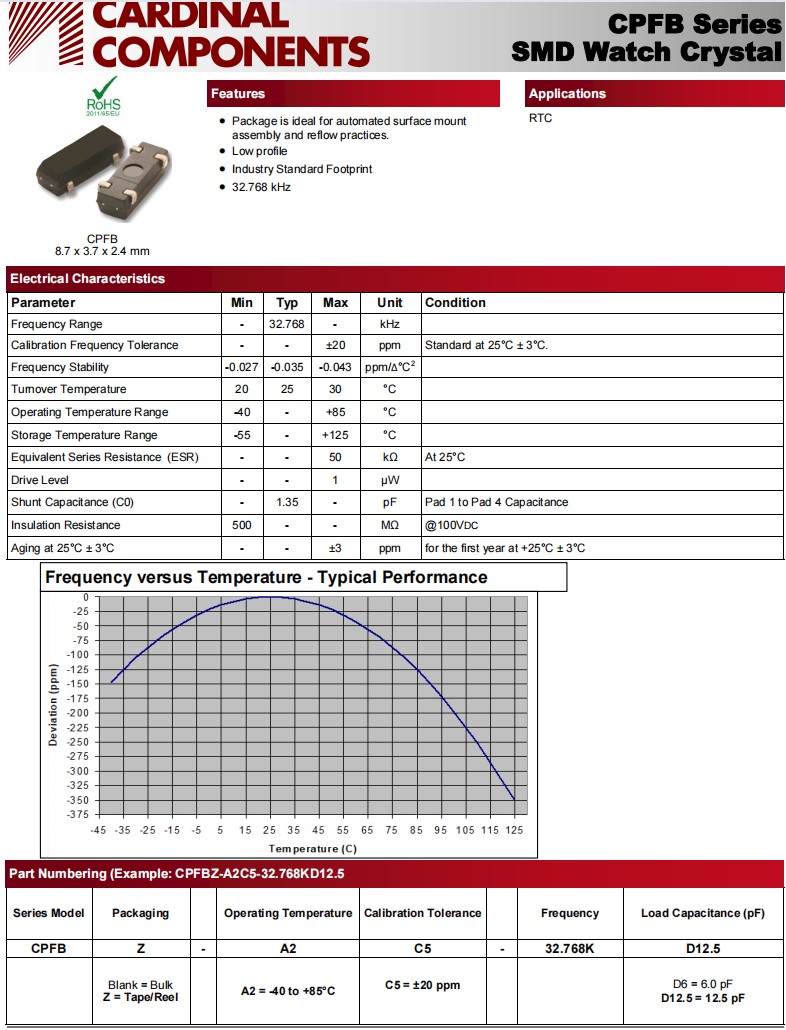

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振,参数表
Parameter
Min
Typ
Max
Unit
Condition
Frequency Range
-
32.768
-
kHz
Calibration Frequency Tolerance
-
-
±20
ppm
Standard at 25°C ± 3°C.
Frequency Stability
-0.027
-0.035
-0.043
ppm/△°C2
Turnover Temperature
20
25
30
°C
Operating Temperature Range
-40
-
+85
°C
Storage Temperature Range
-55
-
+125
°C
Equivalent Series Resistance (ESR)
-
-
50
kΩ
At 25°C
Drive Level
-
-
1
µW
Shunt Capacitance (C0)
-
1.35
-
pF
Pad 1 to Pad 4 Capacitance
Insulation Resistance
500
-
-
MΩ
@100VDC
Aging at 25°C ± 3°C
-
-
±3
ppm
for the first year at +25°C ± 3°C

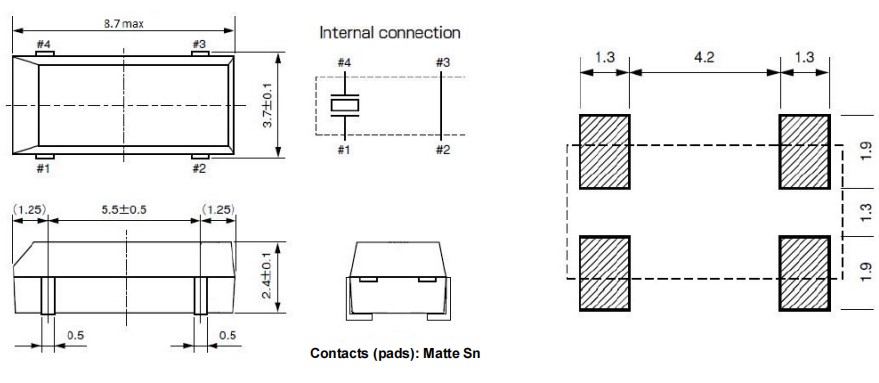

CPFB,CPFBZ-A2C4-32.768KD12.5,8038mm,Cardinal陶瓷晶振,尺寸图
| 原厂编码 | 厂家 | 型号 | 系列 | 频率 |
| CPFBZ-A2C4-32.768KD6 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CPFBZ-A2C5-32.768KD6 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CTF6-A2C5-32.768KD12.5 | Cardinal晶振 | CTF6 | kHz Crystal (Tuning Fork) | 32.768kHz |
| CX5Z-A5B2C5-70-7.37280D18 | Cardinal晶振 | CX5 | MHz Crystal | 7.3728MHz |
| CPFBZ-A2C4-32.768KD12.5 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CX5Z-ARB2C5-70-7.3728D18 | Cardinal晶振 | CX5 | MHz Crystal | 7.3728MHz |
| CX325Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CX325 | MHz Crystal | 20MHz |
| CX635A-A5B2C3-40-18.432D13 | Cardinal晶振 | CX635A | MHz Crystal | 18.432MHz |
| CPFBZ-A2C5-32.768KD12.5 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 27MHz |
| CX5Z-A5B2C5-40-24.0D18 | 卡迪纳尔晶振 | CX5 | MHz Crystal | 24MHz |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CX5 | MHz Crystal | 24.576MHz |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 8MHz |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 24MHz |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 16MHz |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 16MHz |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 10MHz |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 8MHz |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CX5 | MHz Crystal | 25MHz |
| CPFBZ-A2C5-32.768D6 | Cardinal晶振 | CPFB | kHz Crystal (Tuning Fork) | 32.768kHz |
| CX5Z-A2B2C5-40-12.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 12MHz |
| CX5Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 12MHz |
| CX5Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 10MHz |
| CX5Z-A5B2C5-40-25D18 | Cardinal晶振 | CX5 | MHz Crystal | 25MHz |
| CX635BZ-A1B2C3-80-14.31818D20 | Cardinal晶振 | CX635B | MHz Crystal | 14.31818MHz |
| C49X-A3B1C1-40-8.0D16 | Cardinal晶振 | C49 | MHz Crystal | 8MHz |
