频率：32.768KHZ
尺寸：3.2x1.5mm
Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K无源晶体，尺寸3.2x1.5mm，频率32.768KHZ，欧美无源晶振，32.768KHZ音叉晶体，SMD晶振，3215系列SMD晶振，低功耗晶振，低损耗晶振，高性能晶振，BC46系列是一种超小型陶瓷smd晶体，高度为0.8毫米。非常适合最小的电路空间可能的应用包括移动通信、芯片卡、实时时钟和无线通信。产品被称为实时时钟晶振，芯片卡晶振，无线通信晶振，移动设备晶振，网络设备晶振，轻型晶振，32.768KHZ无源晶振，陶瓷晶振，无源贴片晶振，音叉晶体，超小型SMD晶振，3215mm无源晶振，具有轻薄小低损耗的特点。Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K无源晶体.
Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K无源晶体 参数表
| Frequency Range | 32.768 kHz | |||||||||
| Frequency Tolerance @ 25ºC. | ±10ppm, ±20ppm, ±50ppm | |||||||||
| Temperature Coefficient | -0.040ppm / ºC² max. - See Graph Below | |||||||||
| Operating Temperature Range | -40º to +85ºC. | |||||||||
| Load Capacitance | 12.5pF, 9.0pF, 7.0pF, 4.0pF | |||||||||
| Shunt Capacitance | 2pF max. | |||||||||
| Equivalent Series Resistance | 80k ohms max. | |||||||||
| Aging | ±3ppm/ 1st year max. | |||||||||
| Drive Level | 1.0µW max. | |||||||||
| Storage Temperature | -55º to +125ºC. | |||||||||

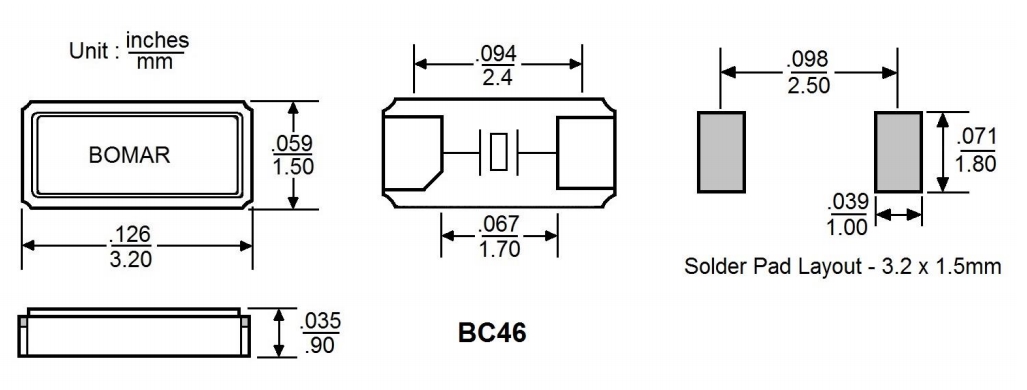

Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K无源晶体 尺寸图

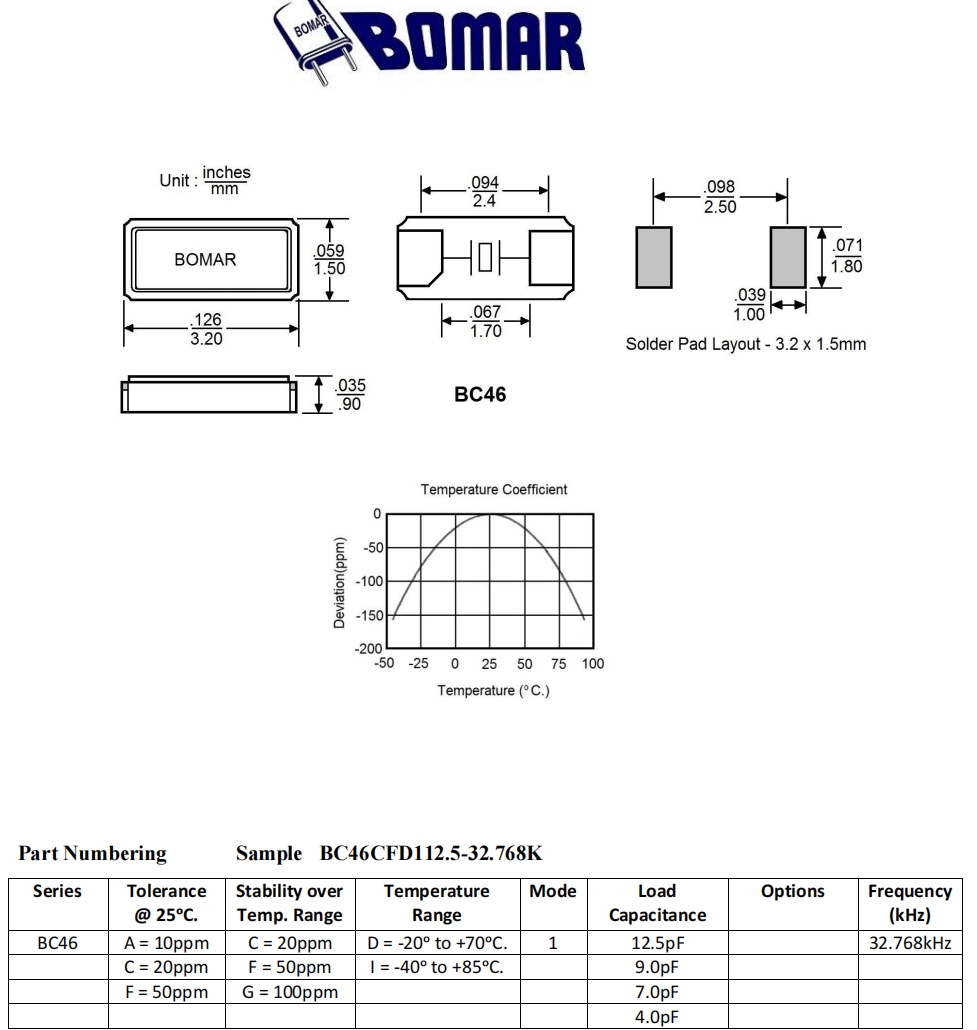

Bomar薄型晶振,BC46CFD112.5-32.768K,3215mm,32.768K无源晶体
产品特点:
尺寸3.2x1.5mm
回流焊接
工作温度-40º至+85ºC。
