小体积石英晶体广泛用于测试设备ABM8-24.000MHZ-D2-T,德克萨斯州奥斯汀- Abracon是无源组件的领导者，很高兴发布了新产品ABM8，产品是为了优化性能而设计的,这些石英晶体产品具有一流的性能，提供高效率和低损耗，并满足行业对快速/稳定数据传输的需求，我们的新解决方案涵盖了广泛的应用，包括物联网、M2M、安全汽车接入等领域，Abracon继续扩展其射频和天线组合的功能。超宽带天线介绍包括所有相对频段，以服务于不同的市场。

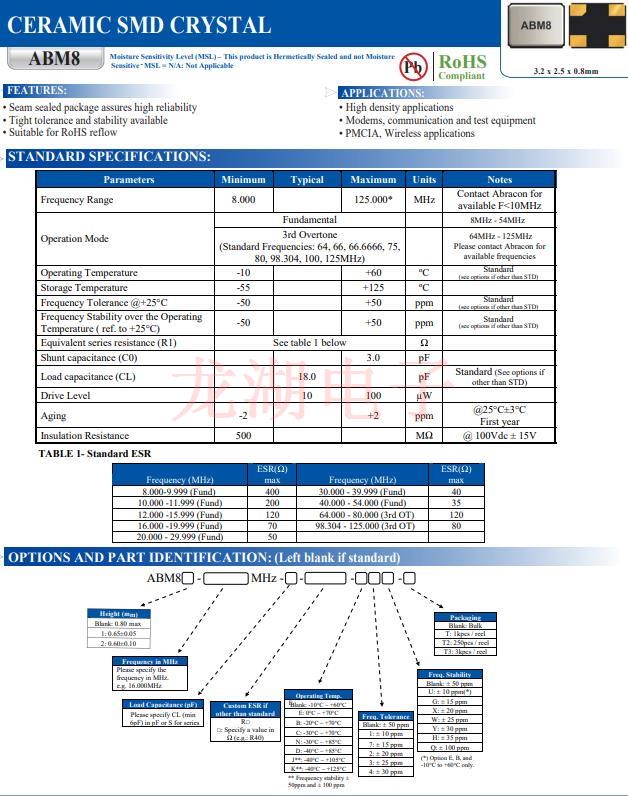

编码ABM8-24.000MHZ-D2-T，型号ABM8，SMD晶振，石英晶体谐振器，石英晶体，尺寸为3225mm,频率为24.0000MHZ，负载电容为18PF，精度为±20ppm ，工作温度-40°C~+85°C，脚位为4-SMD，产品特点:接缝密封包装，确保高可靠性，公差小，稳定性好，适用于RoHS回流。应用程序:高密度应用，调制解调器，通信和测试设备，PMCIA，无线应用.
| Manufacturer Part Number 原厂编码 | Manufacturer厂家 | Series型号 | Type 系列 | Frequency频率 |
| ABLS2-3.6864MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 3.6864MHz |
| ABLS2-3.579545MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 3.579545MHz |
| ABLS2-13.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 13MHz |
| ABLS2-22.1184MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 22.1184MHz |
| ABLS2-6.144MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 6.144MHz |
| ABLS2-7.3728MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 7.3728MHz |
| ABLS2-8.192MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 8.192MHz |
| ABLS2-20.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 20MHz |
| ABLS2-26.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 26MHz |
| ABLS2-29.4912MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 29.4912MHz |
| ABLS2-10.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 10MHz |
| ABLS2-11.0592MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 11.0592MHz |
| ABLS2-4.096MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 4.096MHz |
| ABLS2-16.000MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 16MHz |
| ABLS2-16.384MHZ-D4Y-T | Abracon晶振 | ABLS2 | MHz Crystal | 16.384MHz |
| ABLS2-36.000MHZ-D4YF-T | Abracon晶振 | ABLS2 | MHz Crystal | 36MHz |
| AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABLS-4.9152MHZ-B2-T | Abracon晶振 | ABLS | MHz Crystal | 4.9152MHz |
| ABM8G-12.000MHZ-4Y-T3 | Abracon晶振 | ABM8G | MHz Crystal | 12MHz |
| ABLS-24.000MHZ-B2-T | Abracon晶振 | ABLS | MHz Crystal | 24MHz |
| ABLS-11.0592MHZ-B2-T | Abracon晶振 | ABLS | MHz Crystal | 11.0592MHz |
| ABLS-3.6864MHZ-B2-T | Abracon晶振 | ABLS | MHz Crystal | 3.6864MHz |
| ABLS-14.7456MHZ-B2-T | Abracon晶振 | ABLS | MHz Crystal | 14.7456MHz |
| ABLS-14.31818MHZ-B2-T | Abracon晶振 | ABLS | MHz Crystal | 14.31818MHz |
| ABLS-27.000MHZ-B2F-T | Abracon石英晶体 | ABLS | MHz Crystal | 27MHz |
| ABLS-22.1184MHZ-B2-T | Abracon晶振 | ABLS | MHz Crystal | 22.1184MHz |
| ABLS-24.576MHZ-B2F-T | Abracon晶振 | ABLS | MHz Crystal | 24.576MHz |
| ABLS-8.192MHZ-B2-T | Abracon晶振 | ABLS | MHz Crystal | 8.192MHz |
| ABM8-24.000MHZ-D2-T | Abracon晶振 | ABM8 | MHz Crystal | 24MHz |
| ABM10-167-12.000MHZ-T3 | Abracon晶振 | ABM10 | MHz Crystal | 12MHz |
| ABM10-166-12.000MHZ-T3 | Abracon晶振 | ABM10 | MHz Crystal | 12MHz |
| ABM3B-8.000MHZ-B2-T | Abracon晶振 | ABM3B | MHz Crystal | 8MHz |
| ABS07-32.768KHZ-T | Abracon晶振 | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz |
| ABLS-3.579545MHZ-D-4-T | Abracon晶振 | ABLS | MHz Crystal | 3.579545MHz |
| ABM11-140-26.000MHZ-T3 | Abracon晶振 | ABM11 | MHz Crystal | 26MHz |
| ABM11-141-26.000MHZ-T3 | Abracon晶振 | ABM11 | MHz Crystal | 26MHz |
| ABM11-143-27.120MHZ-T3 | Abracon晶振 | ABM11 | MHz Crystal | 27.12MHz |
| ABM8-25.000MHZ-B2-T | Abracon晶振 | ABM8 | MHz Crystal | 25MHz |
| ABLS3-8.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | MHz Crystal | 8MHz |
| ABLS3-16.000MHZ-D4Y-T | Abracon晶振 | ABLS3 | MHz Crystal | 16MHz |
| ABLS3-3.6864MHZ-D4Y-T | Abracon晶振 | ABLS3 | MHz Crystal | 3.6864MHz |
