高可靠性能的石英晶体谐振器是调制解调器的理想选择ABM8-16.000MHZ-7-1-U-T,有两种方法来为系统计时:使用一个完全集成的晶体振荡器,或配合SMD晶振直接用片上振荡器。使用XO往往会增加功耗和系统成本。通过将石英晶体与单片机内部的嵌入式皮尔斯振荡器电路配合使用,降低了系统功耗和成本。大多数嵌入式振荡器电路使用皮尔斯振荡器,这是一种配置,包括一个简单的逆变放大器作为回路内的逆变增益元件。
在大多数情况下,放大器单元是在MCU内部,而频率选择网络是在MCU外部。外部网络的关键部件是石英晶体。还使用了相关的回路电容和串联(限流)电阻(Rs)。

Manufacturer Part Number  原厂编码 Manufacturer厂家 Series型号 Type 系列 Frequency频率 Package / Case包装/封装
ABLS-37.500MHZ-12-1-U-F-T Abracon晶振 ABLS MHz Crystal 37.5MHz HC49/US
ABSM2-16.9344MHZ-4-T Abracon晶振 ABSM2 MHz Crystal 16.9344MHz 4-SOJ, 9.40mm pitch
ABM10-40.000MHZ-E20-T Abracon晶振 ABM10 MHz Crystal 40MHz 4-SMD, No Lead
ABM8-36.000MHZ-10-1-U-T Abracon晶振 ABM8 MHz Crystal 36MHz 4-SMD, No Lead
ABM8-16.384MHZ-10-1-U-T Abracon晶振 ABM8 MHz Crystal 16.384MHz 4-SMD, No Lead
ABLS7M2-12.000MHZ-D-2Y-T Abracon晶振 ABLS7M2 MHz Crystal 12MHz 2-SMD, Flat Lead
ABLS7M2-14.7456MHZ-D-2Y-T Abracon晶振 ABLS7M2 MHz Crystal 14.7456MHz 2-SMD, Flat Lead
ABM8-16.000MHZ-7-1-U-T Abracon晶振 ABM8 MHz Crystal 16MHz 4-SMD, No Lead
ABM8-25.000MHZ-D2Y-T Abracon晶振 ABM8 MHz Crystal 25MHz 4-SMD, No Lead
ABLS-19.6608MHZ-B2-T Abracon晶振 ABLS MHz Crystal 19.6608MHz HC49/US
ABLS-48.000MHZ-B2-T Abracon晶振 ABLS MHz Crystal 48MHz HC49/US
ABLS3-6.144MHZ-D4Y-T Abracon晶振 ABLS3 MHz Crystal 6.144MHz HC49/US
ABLS3-30.000MHZ-D4YF-T Abracon晶振 ABLS3 MHz Crystal 30MHz HC49/US
ABL-22.1184MHZ-B2 Abracon晶振 ABL MHz Crystal 22.1184MHz HC49/US
ABLSG-4.500MHZ-D2Y-T Abracon晶振 ABLSG MHz Crystal 4.5MHz HC49/US - 3 Lead
ABLSG-12.288MHZ-D2Y-T Abracon晶振 ABLSG MHz Crystal 12.288MHz HC49/US - 3 Lead
ABLSG-13.500MHZ-D2Y-T Abracon晶振 ABLSG MHz Crystal 13.5MHz HC49/US - 3 Lead
高可靠性能的石英晶体谐振器是调制解调器的理想选择ABM8-16.000MHZ-7-1-U-T,这种方法中使用的石英晶体被称为平行镀晶体,其标准值如10pF、12pF、18pF等。这意味着当闭环有效电容完全等于石英电镀电容时,最终振荡频率将在独立石英晶体的公差范围内。

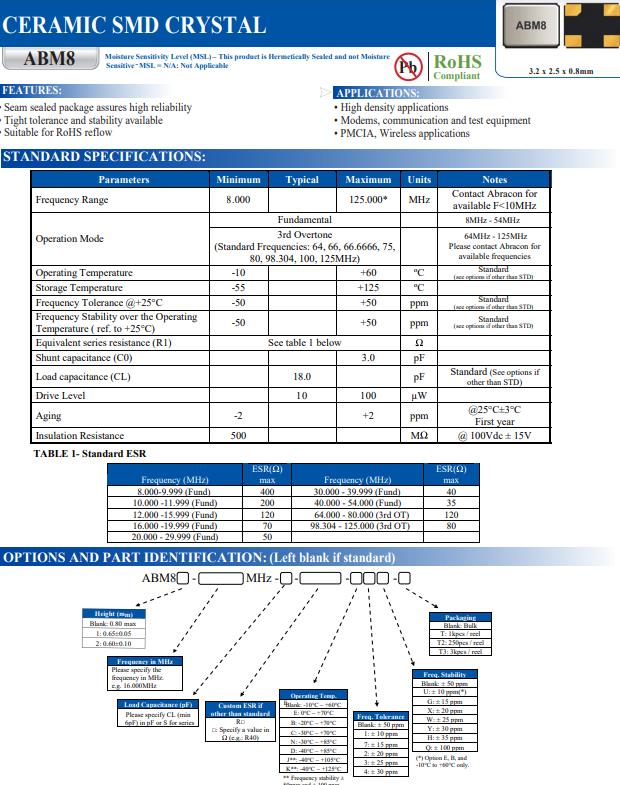

Abracon推出的ABM8-16.000MHZ-7-1-U-T,石英晶体谐振器,接缝密封包装,确保高可靠性,可提供紧密的公差和稳定性,适用于RoHS回流,应用:高密度应用,调制解调器,通信和测试设备,无线应用。

ABM8 21There are two ways to clock a system: use a fully integrated crystal oscillator, or mate the crystal directly with the on-chip oscillator. Using an XO tends to increase power consumption and system costs. By mating a quartz crystal with the embedded Pierce oscillator circuit inside the MCU, system power consumption and costs are reduced. The majority of embedded oscillator circuits use the Pierce oscillator, a configuration which comprises of a simple inverter amplifier as the inverting gain element within the loop.

In most cases, the amplifier unit is internal to the MCU and the frequency-selective network is external to the MCU. The key component in the external network is the quartz crystal. Associated loop capacitors and a series (current limiting) resistor (Rs) are also used.
Quartz Crystals used in this approach are coined as Parallel Plated Crystals, with standard values such as 10pF, 12pF, 18pF, etc. This implies that the final oscillation frequency will be within the tolerance of the standalone quartz crystal when the closed-loop effective capacitance is exactly equal to the quartz plating capacitance.
