7M无源贴片晶振,7M25000150晶振,3225石英晶振

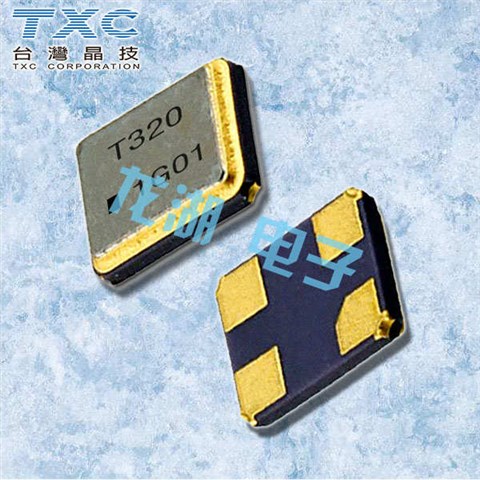

tp1

7M无源贴片晶振,7M25000150晶振,3225石英晶振

火运电子有限公司为TXC晶振品牌正规授权代理商,主推爆款7M250001503225无源贴片石英晶振,是工业与消费电子通用的高精度时钟频率元器件.该晶振采用经典3225贴片封装,尺寸3.2×2.5mm,体积小巧,贴合SMT自动化贴装工艺,适配各类精密电路板设计.产品标准频率25MHz,频率容差与稳定性可达±20ppm,年老化率仅±3ppm,长期运行频率精准,误差极小.标配18pF负载电容,串联电阻低至35Ω,电路适配性极强,能够稳定输出时钟信号.同时具备优异的EMI抑制性能,可有效降低设备电磁干扰问题,工作温度覆盖-40℃至+85℃,高低温环境下性能稳定不漂移.产品符合RoHS环保标准,无铅环保,品质合规,广泛适用于智能家居,数码设备,小型通讯模块等场景.货源充足,原装正品,支持批量订货与样品测试,咨询热线:0755-29952551.

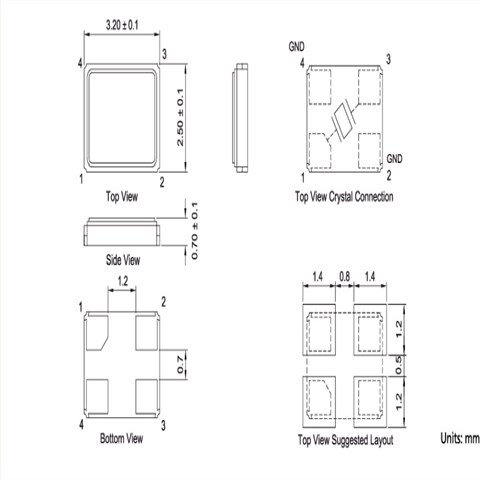

tp2

7M无源贴片晶振,7M25000150晶振,3225石英晶振

编码	品牌	频率	频率公差	频率稳定	负载电容	工作温度	尺寸
7M25000150	TXC	25M	±20ppm	-	18pF	-40°C ~ 85°C	3225石英晶振

tp3

7M无源贴片晶振,7M25000150晶振,3225石英晶振

tp4

SG-8018CG 12.2727M-TJHPA0	EPSON	SG-8018	XO	12.2727 MHz
SG-8018CG 12.8800M-TJHSA0	EPSON	SG-8018	XO	12.88 MHz
SG-8018CG 132.8130M-TJHPA0	EPSON	SG-8018	XO	132.813 MHz
SG-8018CG 4.096250M-TJHSA0	EPSON	SG-8018	XO	4.09625 MHz
SG-8018CG 97.2000M-TJHSA0	EPSON	SG-8018	XO	97.2 MHz
SG-8018CG 0.7990M-TJHSA0	EPSON	SG-8018	XO	799 kHz
SG-8018CG 32.1060M-TJHPA0	EPSON	SG-8018	XO	32.106 MHz
SG-8018CG 23.0140M-TJHSA0	EPSON	SG-8018	XO	23.014 MHz
SG-8018CG 16.3840M-TJHPA0	EPSON	SG-8018	XO	16.384 MHz
SG-8018CG 50.1100M-TJHSA0	EPSON	SG-8018	XO	50.11 MHz
SG-8018CG 18.0224M-TJHPA0	EPSON	SG-8018	XO	18.0224 MHz
SG-8018CG 16.3860M-TJHSA0	EPSON	SG-8018	XO	16.386 MHz
SG-8018CG 53.0000M-TJHSA0	EPSON	SG-8018	XO	53 MHz
SG-8018CG 56.6500M-TJHSA0	EPSON	SG-8018	XO	56.65 MHz
SG-8018CG 13.553750M-TJHSA0	EPSON	SG-8018	XO	13.55375 MHz
SG-8018CG 45.0000M-TJHPA0	EPSON	SG-8018	XO	45 MHz
SG-8018CG 100.0100M-TJHPA0	EPSON	SG-8018	XO	100.01 MHz
SG-8018CG 93.7500M-TJHSA0	EPSON	SG-8018	XO	93.75 MHz
SG-8018CG 19.2840M-TJHPA0	EPSON	SG-8018	XO	19.284 MHz
SG-8018CG 139.2460M-TJHSA0	EPSON	SG-8018	XO	139.246 MHz
SG-8018CG 100.0500M-TJHPA0	EPSON	SG-8018	XO	100.05 MHz
SG-8018CG 19.4444M-TJHPA0	EPSON	SG-8018	XO	19.4444 MHz
SG-8018CG 26.8300M-TJHSA0	EPSON	SG-8018	XO	26.83 MHz
SG-8018CG 32.7500M-TJHSA0	EPSON	SG-8018	XO	32.75 MHz
SG-8018CG 135.2650M-TJHPA0	EPSON	SG-8018	XO	135.265 MHz
SG-8018CG 27.000625M-TJHSA0	EPSON	SG-8018	XO	27.000625 MHz
SG-8018CG 138.7000M-TJHPA0	EPSON	SG-8018	XO	138.7 MHz
SG-8018CG 32.2500M-TJHSA0	EPSON	SG-8018	XO	32.25 MHz
SG-8018CG 137.5000M-TJHPA0	EPSON	SG-8018	XO	137.5 MHz
SG-8018CG 0.9000M-TJHSA0	EPSON	SG-8018	XO	900 kHz
SG-8018CG 56.4480M-TJHSA0	EPSON	SG-8018	XO	56.448 MHz
SG-8018CG 26.9900M-TJHSA0	EPSON	SG-8018	XO	26.99 MHz
SG-8018CG 120.9600M-TJHSA0	EPSON	SG-8018	XO	120.96 MHz
SG-8018CG 14.089190M-TJHSA0	EPSON	SG-8018	XO	14.08919 MHz
SG-8018CG 32.507936M-TJHSA0	EPSON	SG-8018	XO	32.507936 MHz
SG-8018CG 100.0400M-TJHPA0	EPSON	SG-8018	XO	100.04 MHz
SG-8018CG 19.6870M-TJHPA0	EPSON	SG-8018	XO	19.687 MHz
SG-8018CG 44.5450M-TJHPA0	EPSON	SG-8018	XO	44.545 MHz
SG-8018CG 4.9150M-TJHSA0	EPSON	SG-8018	XO	4.915 MHz
SG-8018CG 4.3000M-TJHSA0	EPSON	SG-8018	XO	4.3 MHz
SG-8018CG 32.5140M-TJHPA0	EPSON	SG-8018	XO	32.514 MHz
SG-8018CG 55.5555M-TJHSA0	EPSON	SG-8018	XO	55.5555 MHz
SG-8018CG 50.0080M-TJHPA0	EPSON	SG-8018	XO	50.008 MHz
SG-8018CG 23.8040M-TJHSA0	EPSON	SG-8018	XO	23.804 MHz
SG-8018CG 121.0000M-TJHPA0	EPSON	SG-8018	XO	121 MHz
SG-8018CG 27.0016M-TJHPA0	EPSON	SG-8018	XO	27.0016 MHz
SG-8018CG 148.2200M-TJHPA0	EPSON	SG-8018	XO	148.22 MHz
SG-8018CG 99.9300M-TJHSA0	EPSON	SG-8018	XO	99.93 MHz
SG-8018CG 14.0500M-TJHSA0	EPSON	SG-8018	XO	14.05 MHz
SG-8018CG 98.7650M-TJHSA0	EPSON	SG-8018	XO	98.765 MHz
SG-8018CG 46.495960M-TJHPA0	EPSON	SG-8018	XO	46.49596 MHz
SG-8018CG 50.0025M-TJHSA0	EPSON	SG-8018	XO	50.0025 MHz
SG-8018CG 64.5160M-TJHSA0	EPSON	SG-8018	XO	64.516 MHz
SG-8018CG 0.7840M-TJHPA0	EPSON	SG-8018	XO	784 kHz
SG-8018CG 100.3120M-TJHSA0	EPSON	SG-8018	XO	100.312 MHz
SG-8018CG 4.9600M-TJHPA0	EPSON	SG-8018	XO	4.96 MHz
SG-8018CG 0.9280M-TJHSA0	EPSON	SG-8018	XO	928 kHz
SG-8018CG 14.2180M-TJHSA0	EPSON	SG-8018	XO	14.218 MHz
SG-8018CG 19.6800M-TJHSA0	EPSON	SG-8018	XO	19.68 MHz
SG-8018CG 26.9973M-TJHPA0	EPSON	SG-8018	XO	26.9973 MHz
