为何这款有源振荡器更适合存储区域网络?CB3-3C-24M0000

2022-10-21 15:38:16

为何这款有源振荡器更适合存储区域网络?CB3-3C-24M0000,作为第一家将用于电子产品的石英晶体商业化的公司(1932 年),CTS 在频率控制产品中提供可靠性、质量和出色的稳定性、低抖动和低相位噪声性能方面有着悠久的历史。我们在高性能抖动衰减器、频率转换器、高稳定性和低功耗 OCXO以及高频参考时钟方面进行了创新。我们提供范围广泛、多样化的产品组合,石英晶振包括最小尺寸的标准行业外形尺寸,以及来自我们工程产品平台的定制解决方案,以满足您的特定需求。

CTS频率控制产品为无线基础设施、有线核心网络、同步以太网、光网络、航空电子、军事、石油和天然气勘探以及测试和测量等应用提供定时和同步解决方案。

CB3-3C-24M0000 17为何这款有源振荡器更适合存储区域网络?CB3-3C-24M0000,CTS是高性能晶体振荡器产品设计和制造的行业领导者。我们提供当今可用的最高频率、最低抖动和最低功耗的有源晶振产品。从专为便携式应用 (120mW) 设计的 VFOV400系列OCXO到专为通信系统 (1.8GHz) 设计的VFTX110系列TCXO,我们为您最苛刻的应用提供精确的定时解决方案。我们的工程师将与您一起为您的设计要求定制独特的解决方案。

Manufacturer Part Number原厂代码 Manufacturer品牌 Series型号 Frequency 频率 Frequency Stability频率稳定度 Size / Dimension 尺寸
CB3-3C-1M8432 CTS-Frequency Controls CB3 1.8432MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-24M0000 CTS-Frequency Controls CB3 24MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-24M0000 CTS-Frequency Controls CB3 24MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-24M0000 CTS-Frequency Controls CB3 24MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-25M0000 CTS-Frequency Controls CB3 25MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-25M0000 CTS-Frequency Controls CB3 25MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-25M0000 CTS-Frequency Controls CB3 25MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-15M3600 CTS-Frequency Controls CB3 15.36MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-15M3600 CTS-Frequency Controls CB3 15.36MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-15M3600 CTS-Frequency Controls CB3 15.36MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-1M5440 CTS-Frequency Controls CB3 1.544MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-1M5440 CTS-Frequency Controls CB3 1.544MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3C-1M5440 CTS-Frequency Controls CB3 1.544MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-1M8432 CTS-Frequency Controls CB3 1.8432MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3-3I-1M8432 CTS-Frequency Controls CB3 1.8432MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)

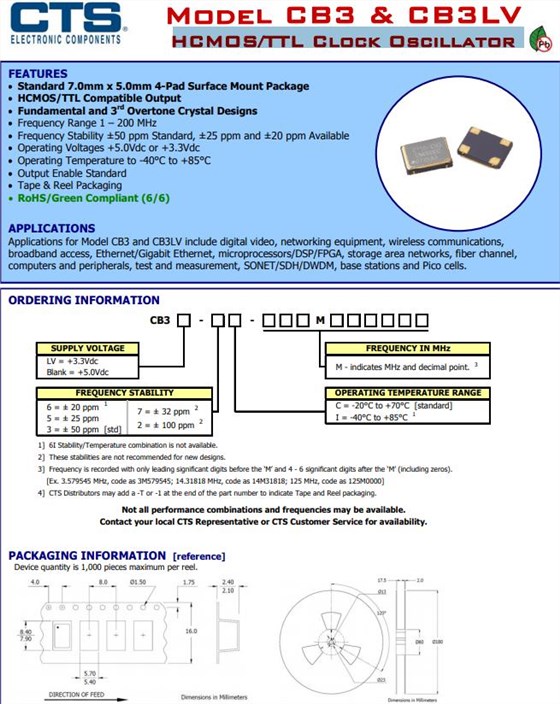

CTS很高兴发布这款XO振荡器CB3-3C-24M0000标准7.0mm x 5.0mm 4-Pad表面安装包,HCMOS/TTL兼容输出,基本和第三泛音水晶设计,频率范围1 - 200 MHz,频率稳定性±50 ppm标准,±25 ppm和±20 ppm可用,工作电压+5.0Vdc或+3.3Vdc,工作温度-40°C至+85°C,标准输出,磁带和卷包装

应用:CB3和CB3LV的应用包括数字视频、网络设备、无线通信、宽带接入,以太网/千兆以太网,微处理器/DSP/FPGA,存储区域网络,光纤通道,计算机和外围设备,测试和测量,SONET/SDH/DWDM,基站和Pico单元。
As the first company to commercialize quartz crystals for use in electronics (1932), CTS has a long history of providing reliability, quality, and exceptional stability, low jitter and low phase noise performance in frequency control products. We have innovations in high-performance Jitter Attenuators, Frequency Translators, tight-stability and low-power OCXOs, and high frequency reference clocks. We offer a wide-ranging, diverse product portfolio of standard industry form-factors down the smallest sizes, as well as custom solutions from our engineered product platforms to meet your specific needs.

CTS Frequency Control products provide timing and synchronization solutions for applications such as wireless infrastructure, wireline core networking, synchronous Ethernet, optical networking, avionics, military, oil & gas exploration, and test & measurement.

CTS is an industry leader in the design and manufacturing of high performance crystal oscillator products. We offer the highest frequencies, lowest jitter, and lowest power consumption products available today. From our VFOV400 series OCXO’s designed for portable applications (120mW) to our VFTX110 series TCXO designed for communication systems (1.8GHz), we have a precise timing solution for your most demanding applications. Our engineers will work with you to customize a unique solution for your design requirements.
