6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器，尺寸2.0x1.2mm，频率32.768KHZ，台湾Siward晶振，希华无源晶体，台湾音叉晶振，32.768KHZ时钟晶振，音叉晶体，SMD无源晶体，32.768KHZ贴片晶振，2012mm无源晶振，无铅环保晶振，两脚贴片晶振，时钟应用晶振，蓝牙晶振，智能计量晶振，游戏机晶振，数码相机晶振，电话机晶振，6G移动通信晶振，高性能晶振，低损耗晶振，低成本，具有小体积高性能的特点.
32.768K音叉晶体产品主要应用于蓝牙应用，智能计量产品，还可以广泛用于数码相机，移动通信，数码相机，游戏机等领域。6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器.

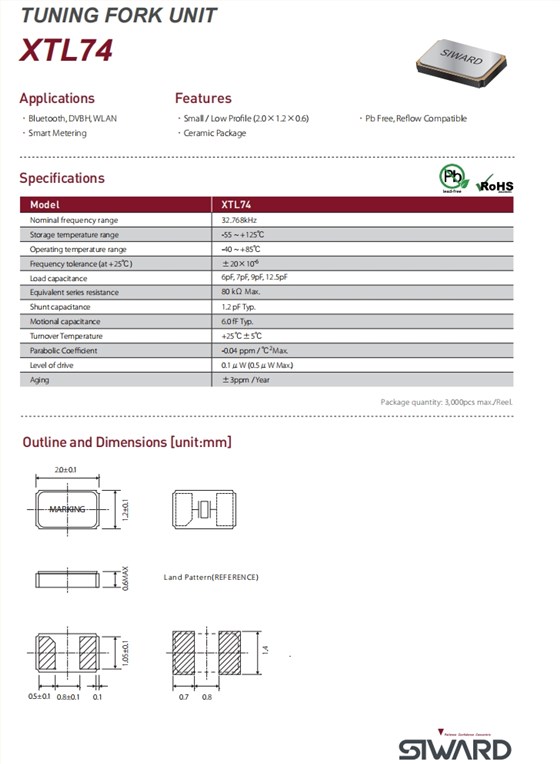

6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器 参数表
| Model | XTL74 | |||||||
| Nominal frequency range | 32.768kHz | |||||||
| Storage temperature range | -55 ~ +125℃ | |||||||
| Operating temperature range | -40 ~ +85℃ | |||||||
| Frequency tolerance (at +25℃) | ±20×10-6 | |||||||
| Load capacitance | 6pF, 7pF, 9pF, 12.5pF | |||||||
| Equivalent series resistance | 80 kΩMax. | |||||||
| Shunt capacitance | 1.2 pF Typ. | |||||||
| Motional capacitance | 6.0 fF Typ. | |||||||
| Turnover Temperature | +25℃±5℃ | |||||||
| Parabolic Coecient | -0.04 ppm /℃2Max. | |||||||
| Level of drive | 0.1μW (0.5μW Max.) | |||||||
| Aging | ±3ppm / Year | |||||||

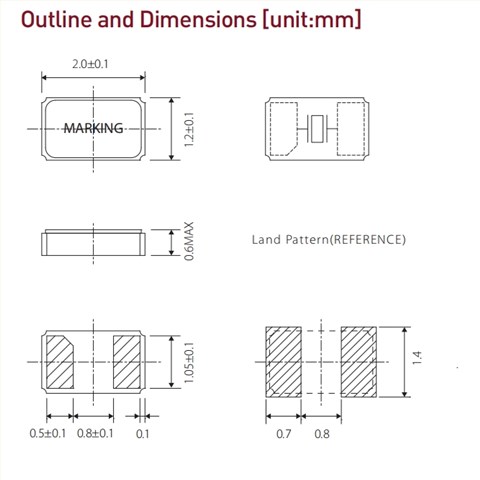

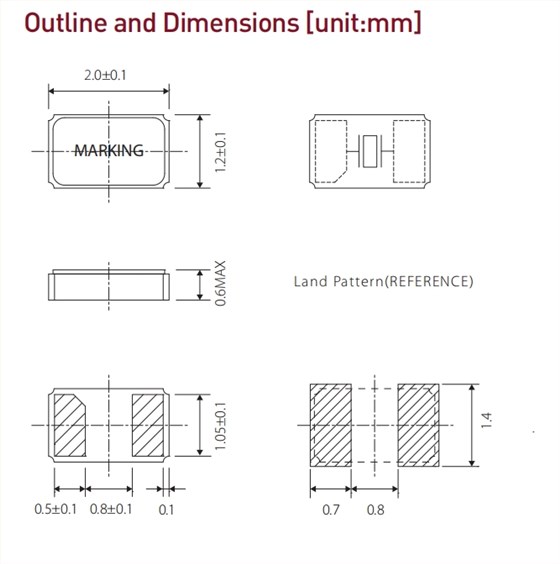

6G移动通信晶振/XTL74时钟晶振/XTL741-S999-298/希华音叉谐振器尺寸图
产品特性：
超小体积
低成本
频率:32.768KHZ
极好的老化
更多相关Siward希华晶振型号
| Mfr Part # | Mfr | Supplier | Description | Series | Frequency | Frequency Tolerance | Load Capacitance |
| XTL721-Q23-048 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 6pF |
| XTL721-S349-005 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 7pF |
| XTL721-S999-301 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 9pF |
| XTL721-S999-429 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 6pF |
| XTL741-S999-319 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 9pF |
| XTL741-U11-402 | Siward | SIWARD晶振 | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 7pF |
| XTL741-S999-298 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 12.5pF |
| XTL741-S999-379 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 7pF |
| XTL741-S999-327 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL74 | 32.768 kHz | ±20ppm | 4pF |
| XTL721-S999-286 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL72 | 32.768 kHz | ±20ppm | 12.5pF |
| XTL751-S999-544 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL75 | 32.768 kHz | ±20ppm | 12.5pF |
| XTL751-S999-548 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL75 | 32.768 kHz | ±20ppm | 9pF |
| XTL751-S999-420 | Siward | Siward | CRYSTAL 32.768 KHZ 20PPM CRYSTAL | XTL75 | 32.768 kHz | ±20ppm | 7pF |
