223-000306-20,8038mm,Oscilent时钟晶振,223系列,32.768KHZ

产品简介

223-000306-20,8038mm,Oscilent时钟晶振,223系列,32.768KHZ,欧美进口晶振,奥斯康利无源晶振,贴片无源晶振,陶瓷晶振,轻薄型晶振,32.768K贴片晶振,音叉晶体,陶瓷谐振器,SMD晶振,8038mm晶体谐振器,尺寸8.0x3.8mm,频率32.768KHZ,负载6.0pF,无铅环保晶振,高性能晶振,高可靠晶振,低损耗晶振,无线鼠标晶振,电话机晶振,数字电表晶振,时钟应用晶振.

产品详情

LH-1

223-000306-20,8038mm,Oscilent时钟晶振,223系列,32.768KHZ特点:

低调,长期稳定性

贴片晶体行业标准占地面积,卓越的抗震性能

卓越的环境特性,磁带和卷轴
RoHs/无铅合规

LH-2

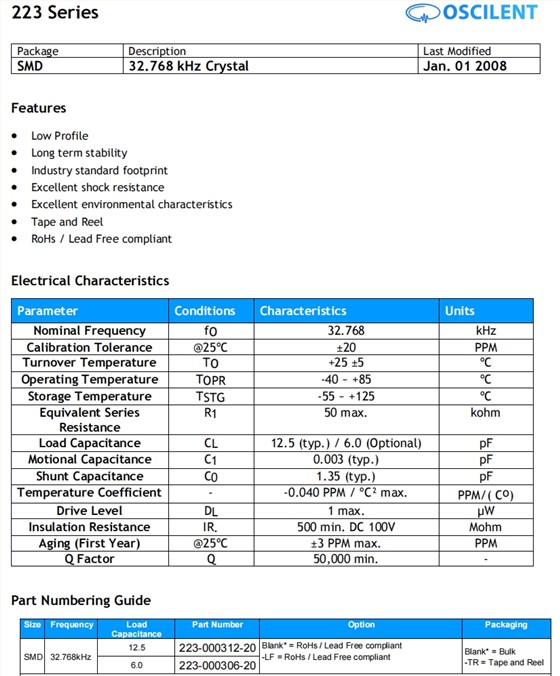

223-000306-20,8038mm,Oscilent时钟晶振,223系列,32.768KHZ 参数表

Parameter	Conditions	Characteristics	Units
Nominal Frequency	fO	32.768	kHz
Calibration Tolerance	@25ºC	±20	PPM
Turnover Temperature	TO	+25 ±5	ºC
Operating Temperature	TOPR	-40 ~ +85	ºC
Storage Temperature	TSTG	-55 ~ +125	ºC
Equivalent Series Resistance	R1	50 max.	kohm
Load Capacitance	CL	12.5 (typ.) / 6.0 (Optional)	pF
Motional Capacitance	C1	0.003 (typ.)	pF
Shunt Capacitance	C0	1.35 (typ.)	pF
Temperature Coefficient	-	-0.040 PPM / ºC² max.	PPM/( Co)
Drive Level	DL	1 max.	µW
Insulation Resistance	IR.	500 min. DC 100V	Mohm
Aging (First Year)	@25ºC	±3 PPM max.	PPM
Q Factor	Q	50,000 min.	-
