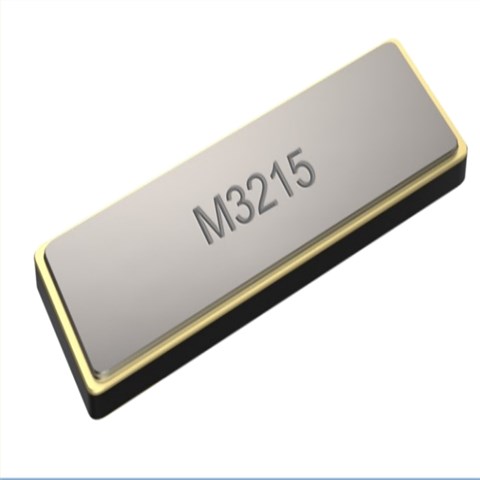

彼得曼音叉晶体,6G无线设备晶振,M3215-32.768kHz-±20ppm-12.5pF，尺寸3.2x1.5mm，频率32.768KHZ，PETERMANN无源晶振，德国进口彼得曼贴片晶振，PETERMANN crystal，德国进口晶振，无源贴片晶振，3215系列SMD晶振，音叉晶体，32.768KHZ无源晶体，轻薄型晶振，小体积晶振，32.768KHZ时钟晶体，无源晶振，两脚贴片晶振，石英晶体，石英晶体谐振器，无线设备专用晶振，时钟应用晶振，移动通信晶振，数码相机专用晶振，儿童游戏机晶振，通信设备晶振，高性能晶振，低损耗晶振，低成本晶振，低耗能晶振，进口音叉晶振，具有轻薄型斯损耗的特点。
32.768KHZ产品比较常用于优秀的时钟发生器的CPU，无线，移动通信，数码相机，儿童游戏机，通信设备，仪器仪表，蓝牙耳机等领域.彼得曼音叉晶体,6G无线设备晶振,M3215-32.768kHz-±20ppm-12.5pF.

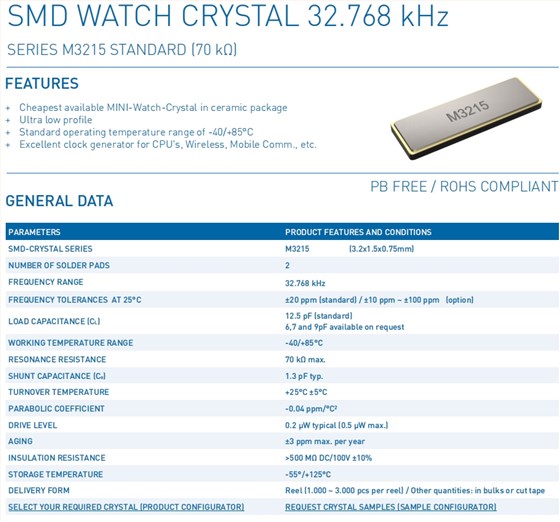

彼得曼音叉晶体,6G无线设备晶振,M3215-32.768kHz-±20ppm-12.5pF参数表
| PARAMETERS | PRODUCT FEATURES AND CONDITIONS |
| SMD-CRYSTAL SERIES | M3215 (3.2*1.5*0.75mm) |
| NUMBER OF SOLDER PADS | 2 |
| FREQUENCY RANGE | 32.768 kHz |
| FREQUENCY TOLERANCES AT 25°C | ±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option) |
| LOAD CAPACITANCE (CL) |
12.5 pF (standard) 6，7 and 9.0 pF available on request |
| WORKING TEMPERATURE RANGE | -40/+85°C |
| RESONANCE RESISTANCE | 70 kΩ max. |
| SHUNT CAPACITANCE (Co) | 1.3 pF typ. |
| TURNOVER TEMPERATURE | +25°C ±5°C |
| PARABOLIC COEFFICIENT | -0.04 ppm/°C² |
| DRIVE LEVEL | 0.2 µW typical (0.5 μW max.) |
| AGING | ±3 ppm max. per year |
| INSULATION RESISTANCE | >500 MΩ DC/100V ±10% |
| STORAGE TEMPERATURE | -55°/+125°C |
| DELIVERY FORM | Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape |

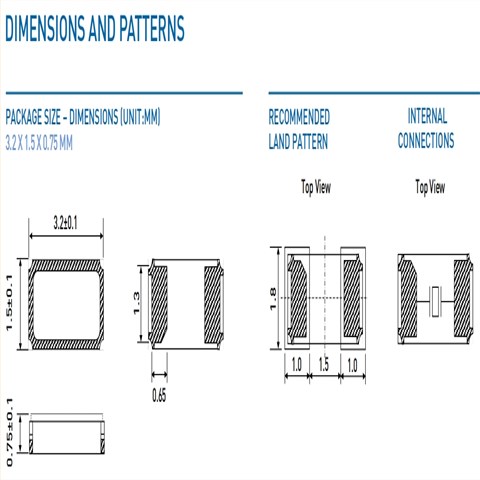

彼得曼音叉晶体,6G无线设备晶振,M3215-32.768kHz-±20ppm-12.5pF 尺寸图
SMD晶体产品特性：
最便宜的迷你手表
水晶陶瓷包装
超低的老化
标准工作温度范围-40/+85°C
更多相关彼得曼晶振型号,请咨询我们！
