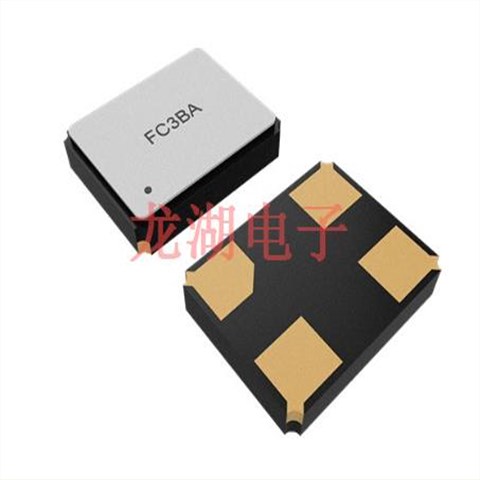

FC3BACBDI16.0-T3,石英贴片,fox小型晶振,环保晶振

产品简介

FC3BACBDI16.0-T3,石英贴片,fox小型晶振,环保晶振,福克斯电子石英晶振谐振器,超薄晶振,小尺寸晶振,无源贴片晶振,进口晶振,导热型晶振,FC3BA晶振,16MHz晶振,车载晶振,在-40到12度也能平稳的且持续的运行,优秀的适应性子在各种环境已有能够很快的适应,医疗器械晶振,智能机器人晶振面,有着陶瓷晶振更好的抗冲击

产品详情

FC3BACBDI16.0-T3,石英贴片,fox小型晶振,环保晶振,福克斯电子石英晶振谐振器,超薄晶振,小尺寸晶振,无源贴片晶振,进口晶振,导热型晶振,FC3BA晶振,16MHz晶振,车载晶振,在-40到12度也能平稳的且持续的运行,优秀的适应性子在各种环境已有能够很快的适应,医疗器械晶振,智能机器人晶振面,有着陶瓷晶振更好的抗冲击

LH-1

FC3BACBDI16.0-T3,石英贴片,fox小型晶振,环保晶振

原厂编码	FC3BACBDI16.0-T3
频率	16MHz
厂家	FOX晶振
型号	FC3BA
频率偏差	±50ppm
负载电容	8pF
工作温度	-40°C至12°C

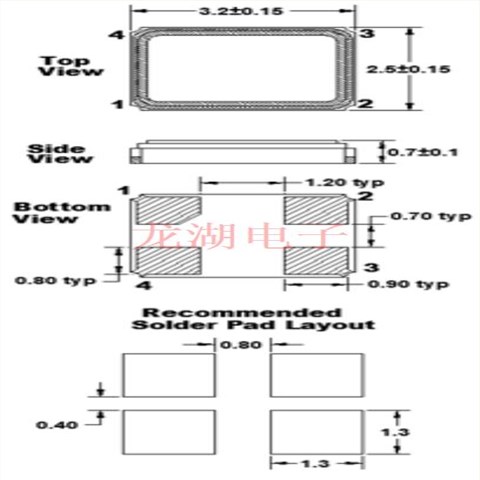

尺寸	3.2*2.5mm

FC3BACBDI16.0-T3,石英贴片,fox小型晶振,环保晶振

FC3BA(1)

编码	品牌	型号	频率	频率偏差	频率容差	负载电容
FC2BSBBMM16.0-T1	Fox crystal	FC2BS	16 MHz	±50ppm	±50ppm	20 pF
FC2BSBBMM16.0-T3	Fox crystal	FC2BS	16 MHz	±50ppm	±50ppm	20 pF
FC3BABBKM20.0-T3	Fox crystal	FC3BA	20 MHz	±50ppm	±50ppm	16 pF
FC3BACAGI16.0-T3	Fox crystal	FC3BA	16 MHz	±100ppm	±30ppm	12 pF
FC3BACALI16.0-T3	Fox crystal	FC3BA	16 MHz	±100ppm	±30ppm	18 pF
FC3BACBDI16.0-T3	Fox crystal	FC3BA	16 MHz	±50ppm	±30ppm	8 pF
FC3BACCGM20.0-T3	Fox crystal	FC3BA	20 MHz	±30ppm	±30ppm	12 pF
FC3BACCLP12.0-T3	Fox crystal	FC3BA	12 MHz	±30ppm	±30ppm	18 pF
FC3BAEBDI12.0-T1	Fox crystal	FC3BA	12 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI16.0-T1	Fox crystal	FC3BA	16 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI20.0-T1	Fox crystal	FC3BA	20 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI24.0-T1	Fox crystal	FC3BA	24 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI25.0-T1	Fox crystal	FC3BA	25 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI40.0-T1	Fox crystal	FC3BA	40 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI8.0-T1	Fox crystal	FC3BA	8 MHz	±50ppm	±20ppm	8 pF
FC3BAEBGI12.0-T1	Fox crystal	FC3BA	12 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI24.0-T1	Fox crystal	FC3BA	24 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI25.0-T1	Fox crystal	FC3BA	25 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI40.0-T1	Fox crystal	FC3BA	40 MHz	±50ppm	±20ppm	12 pF
FC3BQBBDM20.0-T3	Fox crystal	FC3BQ	20 MHz	±50ppm	±50ppm	8 pF
FC3BQBBME12.0-T3	Fox crystal	FC3BQ	12 MHz	±50ppm	±50ppm	20 pF
FC3BQBBME16.0-T1	Fox crystal	FC3BQ	16 MHz	±50ppm	±50ppm	20 pF
