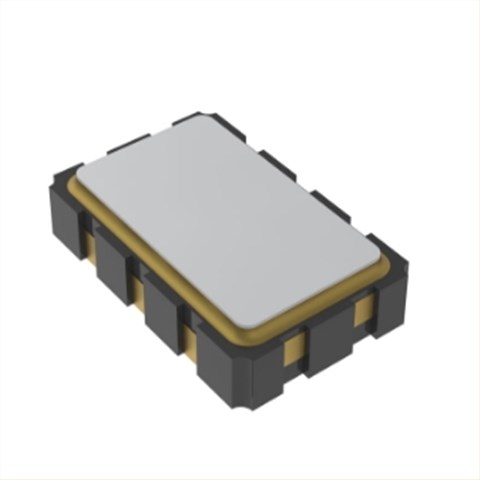

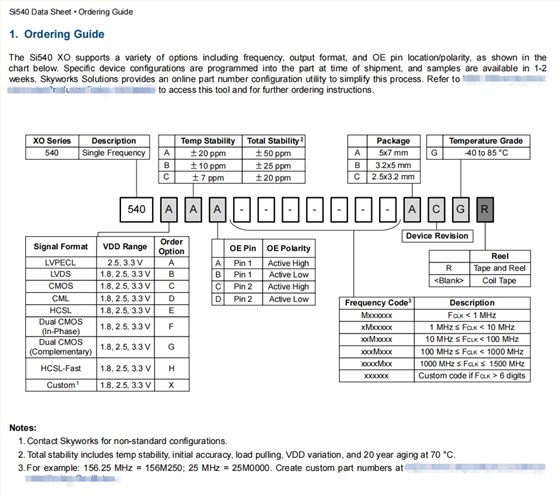

Skyworks有源晶振Si540,540AAA100M000BBG,6G交换机晶振，尺寸5.00x3.20mm，频率100MHZ，输出逻辑LVPECL，电压2.5V，3.3V，脚位6-SMD，OSC贴片有源晶振，差分贴片晶振，XO时钟振荡器，LVPECL输出晶振，差分晶振，贴片差分晶振，差分晶体振荡器，进口LV-PECL差分振荡器，低功耗差分晶振，低电压差分振荡器，低抖动差分晶振，低耗能差分晶振，测试测量差分晶振，服务器专用差分晶振，交换机差分晶振，仪器设备差分晶振，6G光模块差分晶振，无线网络差分振荡器，网络设备差分晶振，轻薄型差分晶振，OSC差分晶振，有源差分晶振，有源晶体振荡器产品适用于100G/200G/400G OTN，相干光学10G/40G/100G光学以太网3G-SDI/12G-SDI/24G-SDI广播视频服务器、交换机、存储、NIC、搜索加速测试和测量时钟和数据恢复FPGA/ASIC时钟等领域。

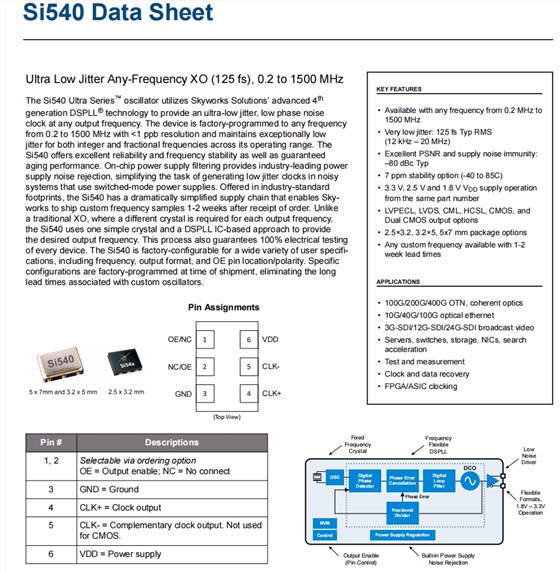

Si540 Ultra系列™ 振荡器采用Skyworks Solutions先进的第四代一代DSPLL®技术，提供超低抖动、低相位噪声时钟在任何输出频率。该设备在工厂编程为任何频率从0.2到1500MHz，分辨率＜1ppb，并保持异常低整数和分数频率在其工作范围内的抖动。这个Si540OSC晶振提供卓越的可靠性和频率稳定性，并保证老化性能。片上电源滤波提供业界领先的电源电源噪声抑制，简化了在噪声中生成低抖动时钟的任务使用开关模式电源的系统。按行业标准提供Si540具有显著简化的供应链，使Sky works能够在收到订单后1-2周内运送定制频率的样品。不像对于每个输出频率需要不同晶体的传统XO，Si540使用一种简单的晶体.Skyworks有源晶振Si540,540AAA100M000BBG,6G交换机晶振.
Skyworks有源晶振Si540,540AAA100M000BBG,6G交换机晶振参数表
| Parameter | Symbol | Test Condition/Comment | Min | Typ | Max | Unit | |||||||||||||||||||||||||||||||||||||
| Temperature Range | TA | –40 | 85 | ºC | |||||||||||||||||||||||||||||||||||||||
| Frequency Range | FCLK | LVPECL, LVDS, CML | 0.2 | — | 1500 | MHz | |||||||||||||||||||||||||||||||||||||
| HCSL | 0.2 | — | 400 | MHz | |||||||||||||||||||||||||||||||||||||||
| CMOS, Dual CMOS | 0.2 | 250 | MHz | ||||||||||||||||||||||||||||||||||||||||
| Supply Voltage | V DD | 3.3 V | 3.135 | 3.3 | 3.465 | V | |||||||||||||||||||||||||||||||||||||
| 2.5 V | 2.375 | 2.5 | 2.625 | V | |||||||||||||||||||||||||||||||||||||||
| 1.8 V | 1.71 | 1.8 | 1.89 | V | |||||||||||||||||||||||||||||||||||||||
| Supply Current | IDD | LVPECL (output enabled) | 100 | 145 | mA | ||||||||||||||||||||||||||||||||||||||
| LVDS/CML (output enabled) | — | 75 | 111 | mA | |||||||||||||||||||||||||||||||||||||||
| HCSL (output enabled) | 80 | 125 | mA | ||||||||||||||||||||||||||||||||||||||||
| HCSL-Fast (output enabled) | — | 88 | 137 | mA | |||||||||||||||||||||||||||||||||||||||
| CMOS (output enabled) | 74 | 108 | mA | ||||||||||||||||||||||||||||||||||||||||
| Dual CMOS (output enabled) | — | 80 | 125 | mA | |||||||||||||||||||||||||||||||||||||||
| Tristate Hi-Z (output disabled) | 64 | 100 | mA | ||||||||||||||||||||||||||||||||||||||||
| Temperature Stability | Frequency stability Grade A | –20 | — | 20 | ppm | ||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –10 | 10 | ppm | ||||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –7 | — | 7 | ppm | |||||||||||||||||||||||||||||||||||||||
| Total Stability1 | F STAB | Frequency stability Grade A | –50 | 50 | ppm | ||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade B | –25 | — | 25 | ppm | |||||||||||||||||||||||||||||||||||||||
| Frequency stability Grade C | –20 | 20 | ppm | ||||||||||||||||||||||||||||||||||||||||
|
Rise/Fall Time (20% to 80% VPP) |
TR/TF | LVPECL/LVDS/CML | — | — | 350 | ps | |||||||||||||||||||||||||||||||||||||
|
CMOS / Dual CMOS (CL= 5 pF) |
— | 0.5 | 1.5 | ns | |||||||||||||||||||||||||||||||||||||||
| HCSL, FCLK>50 MHz | — | — | 550 | ps | |||||||||||||||||||||||||||||||||||||||
| HCSL-Fast, FCLK>50 MHz | — | — | 275 | ps | |||||||||||||||||||||||||||||||||||||||
| Duty Cycle | DC | All formats | 45 | — | 55 | % | |||||||||||||||||||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.7 × VDD | V | ||||||||||||||||||||||||||||||||||||||||
| VIL | — | — | 0.3 × VDD | V | |||||||||||||||||||||||||||||||||||||||
| TD |
Output Disable Time, FCLK>10 MHz |
— | — | 3 | µs | ||||||||||||||||||||||||||||||||||||||
| TE |
Output Enable Time, FCLK>10 MHz |
20 | µs | ||||||||||||||||||||||||||||||||||||||||
| Powerup Time | tOSC |
Time from 0.9 × VDDuntil output fre- quency (FCLK) within spec |
— | — | 10 | ms | |||||||||||||||||||||||||||||||||||||

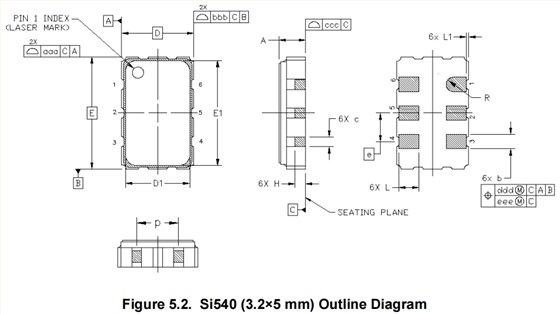

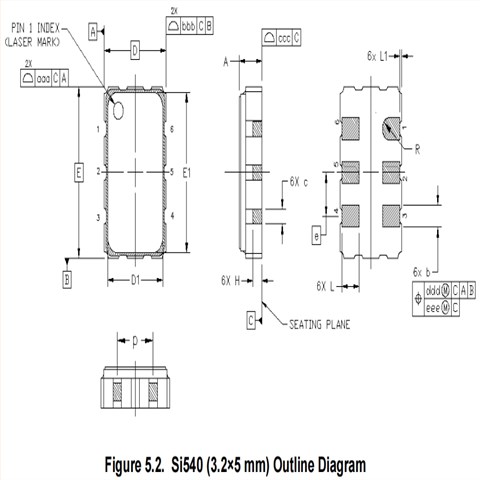

Skyworks有源晶振Si540,540AAA100M000BBG,6G交换机晶振 尺寸图
差分晶振产品特性：
可用于0.2 MHz至1500兆赫
极低抖动：125 fs典型RMS（12kHz–20MHz）
出色的PSNR和电源抗扰度：–80 dBc典型值
7ppm稳定性选项（-40至85摄氏度）
3.3 V、2.5 V和1.8 V VDD电源操作
来自相同的零件号
LVPECL、LVDS、CML、HCSL、CMOS和双CMOS输出选项
2.5×3.2、3.2×5、5x7 mm封装选项
任何自定义频率，可提供1-2周交付周期
