MHz范围晶体X3型非常适合低电路板高度或超小型可穿戴应用,X3AEELNANF-26.000000,石英晶体

2022-06-23 09:10:22 龙湖电子

智能网络产品通过蓝牙、有线以太网、Wi-Fi或其他连接协议与云端进行通信。由于涉及无线电和高速数据,因此需要ppm级的低抖动精确定时时钟。Taitien的MHz产品系列包括各种类型的晶体单元,从简单的手表晶体到用于工业和医疗应用的高性能晶体。我们提供小至1.65x1.25mm的多种封装尺寸,1612小体积晶振,频率容差和温度稳定性达到5ppm,频率从3.58MHz到80MHz以及满足低老化和低相位噪声等专业要求的型号。同时,我们还包括一个热冲击和振动版本,可在高达-40至125℃的扩展工作温度范围内工作。此外,符合AEC-Q200标准,3.58MHz至80MHz的宽频率范围,出色的频率稳定性低至±5ppm,宽温度范围,符合-40至+125℃的汽车要求。

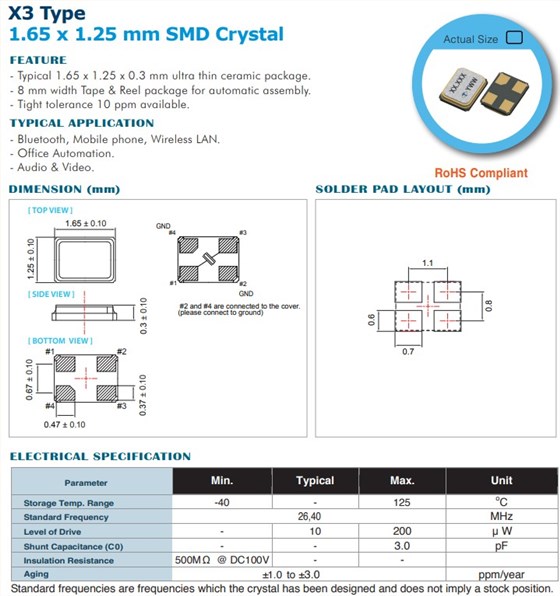

MHz范围晶体X3型,典型的1.65x1.25x0.3mm 超薄陶瓷封装石英晶体用于自动组装的8毫米宽卷带封装,严格公差10ppm可用,超小型封装和0.3毫米超薄,非常适合低电路板高度或超小型可穿戴应用。

特征:

封装尺寸:1.65x1.25x0.3mm
频率: 24至54MHz
产品形状:贴片SMD晶振
频率。容差 (+25°C±3°):±10ppm
解决方案:消费类电子产品,游戏机,高清和存储,工业的,物联网、M2M、可穿戴设备,移动通讯,联网,PC/PC周边/IT,RFID/NFC,WiMAX、WLAN、Wi-Fi
特征:微型,微型水晶
产品类别:兆赫晶体,石英晶体

MHz范围晶体X3型非常适合低电路板高度或超小型可穿戴应用,X3AEELNANF-26.000000,石英晶体

Manufacturer Part Number原厂编码 Manufacturer厂家 Series型号 Type 系列 Frequency Operating Temperature 工作温度 Package / Case包装/封装
XXDCCCNANF-12.000000 Taitien XX MHz Crystal 12MHz -20°C ~ 70°C 4-SMD, No Lead
XXDCCCNANF-12.000000 Taitien XX MHz Crystal 12MHz -20°C ~ 70°C 4-SMD, No Lead
XXDCCCNANF-12.000000 Taitien XX MHz Crystal 12MHz -20°C ~ 70°C 4-SMD, No Lead
XXGEGLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXGEGLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXGEGLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXGGGINANF-25.000000 Taitien XX MHz Crystal 25MHz -10°C ~ 60°C 4-SMD, No Lead
XXGGGINANF-25.000000 Taitien XX MHz Crystal 25MHz -10°C ~ 60°C 4-SMD, No Lead
XXGGGINANF-25.000000 Taitien XX MHz Crystal 25MHz -10°C ~ 60°C 4-SMD, No Lead
XXDGHHPANF-20.000000 Taitien XX MHz Crystal 20MHz -40°C ~ 125°C 4-SMD, No Lead
XXDGHHPANF-20.000000 Taitien XX MHz Crystal 20MHz -40°C ~ 125°C 4-SMD, No Lead
XXDGHHPANF-20.000000 Taitien XX MHz Crystal 20MHz -40°C ~ 125°C 4-SMD, No Lead
XXCGGINANF-18.432000 Taitien XX MHz Crystal 18.432MHz -10°C ~ 60°C 4-SMD, No Lead
XXCGGINANF-18.432000 Taitien XX MHz Crystal 18.432MHz -10°C ~ 60°C 4-SMD, No Lead
XXCGGINANF-18.432000 Taitien XX MHz Crystal 18.432MHz -10°C ~ 60°C 4-SMD, No Lead
XXBBBCNANF-16.000000 Taitien XX MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XXBBBCNANF-16.000000 Taitien XX MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XXBBBCNANF-16.000000 Taitien XX MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XXHCCLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXHCCLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXHCCLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXBBBCNANF-26.000000 Taitien XX MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XXBBBCNANF-26.000000 Taitien XX MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XXBBBCNANF-26.000000 Taitien XX MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XXGPPLNANF-20.000000 Taitien XX MHz Crystal 20MHz -40°C ~ 85°C 4-SMD, No Lead
XXGPPLNANF-20.000000 Taitien XX MHz Crystal 20MHz -40°C ~ 85°C 4-SMD, No Lead
XXGPPLNANF-20.000000 Taitien XX MHz Crystal 20MHz -40°C ~ 85°C 4-SMD, No Lead
XXEBCLNANF-40.000000 Taitien XX MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XXEBCLNANF-40.000000 Taitien XX MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XXEBCLNANF-40.000000 Taitien XX MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEEJNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEELNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEECNANF-26.000000 Taitien X3 MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-26.000000 Taitien X3 MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-26.000000 Taitien X3 MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-27.000000 Taitien X3 MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-27.000000 Taitien X3 MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-27.000000 Taitien X3 MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-30.000000 Taitien X3 MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-30.000000 Taitien X3 MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-30.000000 Taitien X3 MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-40.000000 Taitien X3 MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-40.000000 Taitien X3 MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-40.000000 Taitien X3 MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-48.000000 Taitien X3 MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-48.000000 Taitien X3 MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-48.000000 Taitien X3 MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEEJNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEELNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-27.000000 Taitien X3 MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-27.120000 Taitien X3 MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-30.000000 Taitien X3 MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-38.400000 Taitien X3 MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYIGGLNANF-16.000000 Taitien XY MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XYIGGLNANF-16.000000 Taitien XY MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XYIGGLNANF-16.000000 Taitien XY MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XYCBBCNANF-16.000000 Taitien XY MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XYCBBCNANF-16.000000 Taitien XY MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XYCBBCNANF-16.000000 Taitien XY MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XYCBBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYCBBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYCBBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYCCCCNANF-19.200000 Taitien XY MHz Crystal 19.2MHz -20°C ~ 70°C 4-SMD, No Lead
XYCCCCNANF-19.200000 Taitien XY MHz Crystal 19.2MHz -20°C ~ 70°C 4-SMD, No Lead
XYCCCCNANF-19.200000 Taitien XY MHz Crystal 19.2MHz -20°C ~ 70°C 4-SMD, No Lead
XYCEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYCEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYCEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYCEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYCEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYCEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYHEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYHEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYHEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEEJNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
XYABBCNANF-24.576000 Taitien XY MHz Crystal 24.576MHz -20°C ~ 70°C 4-SMD, No Lead
XYABBCNANF-24.576000 Taitien XY MHz Crystal 24.576MHz -20°C ~ 70°C 4-SMD, No Lead
XYABBCNANF-24.576000 Taitien XY MHz Crystal 24.576MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-27.000000 Taitien XY MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-27.000000 Taitien XY MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-27.000000 Taitien XY MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-40.000000 Taitien XY MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-40.000000 Taitien XY MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-40.000000 Taitien XY MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-48.000000 Taitien XY MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-48.000000 Taitien XY MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-48.000000 Taitien XY MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-50.000000 Taitien XY MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-50.000000 Taitien XY MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-50.000000 Taitien XY MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEEJNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEELNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEECNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-27.000000 Taitien XY MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-27.000000 Taitien XY MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-27.000000 Taitien XY MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-40.000000 Taitien XY MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-40.000000 Taitien XY MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-40.000000 Taitien XY MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-48.000000 Taitien XY MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-48.000000 Taitien XY MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-48.000000 Taitien XY MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-50.000000 Taitien XY MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-50.000000 Taitien XY MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-50.000000 Taitien XY MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEEJNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEELNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-27.000000 Taitien XY MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-30.000000 Taitien XY MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEELNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYCBBINANF-32.000000 Taitien XY MHz Crystal 32MHz -10°C ~ 60°C 4-SMD, No Lead
XYCBBINANF-32.000000 Taitien XY MHz Crystal 32MHz -10°C ~ 60°C 4-SMD, No Lead
XYCBBINANF-32.000000 Taitien XY MHz Crystal 32MHz -10°C ~ 60°C 4-SMD, No Lead
XYFBBCNANF-20.000000 Taitien XY MHz Crystal 20MHz -20°C ~ 70°C 4-SMD, No Lead
XYFBBCNANF-20.000000 Taitien XY MHz Crystal 20MHz -20°C ~ 70°C 4-SMD, No Lead
XYFBBCNANF-20.000000 Taitien XY MHz Crystal 20MHz -20°C ~ 70°C 4-SMD, No Lead
XYDBPLNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYDBPLNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYDBPLNANF-40.000000 Taitien XY MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XYGBCLNANF-24.000000 Taitien XY MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XYGBCLNANF-24.000000 Taitien XY MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XYGBCLNANF-24.000000 Taitien XY MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XXCCCCNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXCCCCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XXCCCCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEEJNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-40.000000 Taitien X3 MHz Crystal 40MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEELNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEECNANF-32.000000 Taitien X3 MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-32.000000 Taitien X3 MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
MHz范围晶体X3型非常适合低电路板高度或超小型可穿戴应用,X3AEELNANF-26.000000,石英晶体

应用于:可穿戴设备、智能卡、近场通信(NFC)、蓝牙、车载远程信息处理、联网汽车、车载音频、机器对机器通信(M2M)、物联网(IoT)、真无线耳机( TWS)、智能手表、手机、笔记本/台式机、医疗、工业设备

1

X3LEECNANF-32.000000 Taitien X3 MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEELNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEELNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
X3LEEJNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-26.000000 Taitien X3 MHz Crystal 26MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-48.000000 Taitien X3 MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
X3LEEJNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEELNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEELNANF-50.000000 Taitien X3 MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
X3AEEJNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
X3AEEJNANF-32.000000 Taitien X3 MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
XYBBDLSANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYBBDLSANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYBBDLSANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEEJNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
XYFEECNANF-24.000000 Taitien XY MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XYFEECNANF-24.000000 Taitien XY MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XYFEECNANF-24.000000 Taitien XY MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYABBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYABBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYABBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEECNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYLEEJNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEELNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEELNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XYAEEJNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-27.120000 Taitien XY MHz Crystal 27.12MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-50.000000 Taitien XY MHz Crystal 50MHz -40°C ~ 105°C 4-SMD, No Lead
XYBBBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYBBBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYBBBCNANF-26.000000 Taitien XY MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XYAEEJNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
XYAEEJNANF-38.400000 Taitien XY MHz Crystal 38.4MHz -40°C ~ 105°C 4-SMD, No Lead
XYCBBCNANF-20.000000 Taitien XY MHz Crystal 20MHz -20°C ~ 70°C 4-SMD, No Lead
XYCBBCNANF-20.000000 Taitien XY MHz Crystal 20MHz -20°C ~ 70°C 4-SMD, No Lead
XYCBBCNANF-20.000000 Taitien XY MHz Crystal 20MHz -20°C ~ 70°C 4-SMD, No Lead
XXHCECNANF-26.690000 Taitien XX MHz Crystal 26.69MHz -20°C ~ 70°C 4-SMD, No Lead
XXHCECNANF-26.690000 Taitien XX MHz Crystal 26.69MHz -20°C ~ 70°C 4-SMD, No Lead
XXHCECNANF-26.690000 Taitien XX MHz Crystal 26.69MHz -20°C ~ 70°C 4-SMD, No Lead
XXHEGCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XXHEGCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XXHEGCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XXHCCCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XXHCCCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XXHCCCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-27.000000 Taitien XZ MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-27.000000 Taitien XZ MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-27.000000 Taitien XZ MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-48.000000 Taitien XZ MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-48.000000 Taitien XZ MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-48.000000 Taitien XZ MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-27.000000 Taitien XZ MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-27.000000 Taitien XZ MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-27.000000 Taitien XZ MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-30.000000 Taitien XZ MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-30.000000 Taitien XZ MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-30.000000 Taitien XZ MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-40.000000 Taitien XZ MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-40.000000 Taitien XZ MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-40.000000 Taitien XZ MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-48.000000 Taitien XZ MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-48.000000 Taitien XZ MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-48.000000 Taitien XZ MHz Crystal 48MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-50.000000 Taitien XZ MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-50.000000 Taitien XZ MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XZLEECNANF-50.000000 Taitien XZ MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-50.000000 Taitien XZ MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-50.000000 Taitien XZ MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-50.000000 Taitien XZ MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-30.000000 Taitien XZ MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-30.000000 Taitien XZ MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-30.000000 Taitien XZ MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-40.000000 Taitien XZ MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-40.000000 Taitien XZ MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XZAEECNANF-40.000000 Taitien XZ MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XXHEECNANF-30.000000 Taitien XX MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XXHEECNANF-30.000000 Taitien XX MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XXHEECNANF-30.000000 Taitien XX MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XXCCEINANF-27.120000 Taitien XX MHz Crystal 27.12MHz -10°C ~ 60°C 4-SMD, No Lead
XXCCEINANF-27.120000 Taitien XX MHz Crystal 27.12MHz -10°C ~ 60°C 4-SMD, No Lead
XXCCEINANF-27.120000 Taitien XX MHz Crystal 27.12MHz -10°C ~ 60°C 4-SMD, No Lead
XZAEELNANF-26.000000 Taitien XZ MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-26.000000 Taitien XZ MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-26.000000 Taitien XZ MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-27.000000 Taitien XZ MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-27.000000 Taitien XZ MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-27.000000 Taitien XZ MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-40.000000 Taitien XZ MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-40.000000 Taitien XZ MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-40.000000 Taitien XZ MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-26.000000 Taitien XZ MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-26.000000 Taitien XZ MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-26.000000 Taitien XZ MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-27.000000 Taitien XZ MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-27.000000 Taitien XZ MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-27.000000 Taitien XZ MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-40.000000 Taitien XZ MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-40.000000 Taitien XZ MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-40.000000 Taitien XZ MHz Crystal 40MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-50.000000 Taitien XZ MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-50.000000 Taitien XZ MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-50.000000 Taitien XZ MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-50.000000 Taitien XZ MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-50.000000 Taitien XZ MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-50.000000 Taitien XZ MHz Crystal 50MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-48.000000 Taitien XZ MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-48.000000 Taitien XZ MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEELNANF-48.000000 Taitien XZ MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-48.000000 Taitien XZ MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-48.000000 Taitien XZ MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-48.000000 Taitien XZ MHz Crystal 48MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XZAEELNANF-38.400000 Taitien XZ MHz Crystal 38.4MHz -40°C ~ 85°C 4-SMD, No Lead
XXCBBCNANF-24.000000 Taitien XX MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XXCBBCNANF-24.000000 Taitien XX MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XXCBBCNANF-24.000000 Taitien XX MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XXHCELNANF-26.000000 Taitien XX MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XXHCELNANF-26.000000 Taitien XX MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XXHCELNANF-26.000000 Taitien XX MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XXEBBCNANF-40.000000 Taitien XX MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XXEBBCNANF-40.000000 Taitien XX MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XXEBBCNANF-40.000000 Taitien XX MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XXCBPLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXCBPLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXCBPLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXDPBISANF-16.000000 Taitien XX MHz Crystal 16MHz -10°C ~ 60°C 4-SMD, No Lead
XXDPBISANF-16.000000 Taitien XX MHz Crystal 16MHz -10°C ~ 60°C 4-SMD, No Lead
XXDPBISANF-16.000000 Taitien XX MHz Crystal 16MHz -10°C ~ 60°C 4-SMD, No Lead
XXHEELNANF-18.432000 Taitien XX MHz Crystal 18.432MHz -40°C ~ 85°C 4-SMD, No Lead
XXHEELNANF-18.432000 Taitien XX MHz Crystal 18.432MHz -40°C ~ 85°C 4-SMD, No Lead
XXHEELNANF-18.432000 Taitien XX MHz Crystal 18.432MHz -40°C ~ 85°C 4-SMD, No Lead
XXFPPLNANF-32.000000 Taitien XX MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XXFPPLNANF-32.000000 Taitien XX MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XXFPPLNANF-32.000000 Taitien XX MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XXHEELNANF-24.000000 Taitien XX MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XXHEELNANF-24.000000 Taitien XX MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XXHEELNANF-24.000000 Taitien XX MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XXCCCLNANF-49.152000 Taitien XX MHz Crystal 49.152MHz -40°C ~ 85°C 4-SMD, No Lead
XXCCCLNANF-49.152000 Taitien XX MHz Crystal 49.152MHz -40°C ~ 85°C 4-SMD, No Lead
XXCCCLNANF-49.152000 Taitien XX MHz Crystal 49.152MHz -40°C ~ 85°C 4-SMD, No Lead
XXDBPLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXDBPLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXDBPLNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
X2AEECNANF-24.000000 Taitien X2 MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
X2AGHINANF-48.000000 Taitien X2 MHz Crystal 48MHz -10°C ~ 60°C 4-SMD, No Lead
X2CGGCSANF-25.000000 Taitien X2 MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
X2CGGCSANF-30.000000 Taitien X2 MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
X2DCCCNANF-25.000000 Taitien X2 MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
X2DEECNANF-24.000000 Taitien X2 MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
X2DEECNANF-25.000000 Taitien X2 MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
X2FCCLNANF-16.000000 Taitien X2 MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
X2FCCLNANF-25.000000 Taitien X2 MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
X2GCELNANF-24.000000 Taitien X2 MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
X2GCELNANF-25.000000 Taitien X2 MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
X2GEECNANF-24.000000 Taitien X2 MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
X2GEGLNANF-24.000000 Taitien X2 MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
X2GGGLNANF-12.000000 Taitien X2 MHz Crystal 12MHz -40°C ~ 85°C 4-SMD, No Lead
XXCCCCNANF-12.000000 Taitien XX MHz Crystal 12MHz -20°C ~ 70°C 4-SMD, No Lead
XXCGGLNANF-12.000000 Taitien XX MHz Crystal 12MHz -40°C ~ 85°C 4-SMD, No Lead
XXGDDCNANF-25.000000 Taitien XX MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XXGEHHNANF-24.000000 Taitien XX MHz Crystal 24MHz -40°C ~ 125°C 4-SMD, No Lead
XXHEELNANF-12.000000 Taitien XX MHz Crystal 12MHz -40°C ~ 85°C 4-SMD, No Lead
XXPEELNANF-16.000000 Taitien XX MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XZGEECNANF-24.000000 Taitien XZ MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XZHBBCNANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZLCCCNANF-30.000000 Taitien XZ MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XSCEECNANF-8.000000 Taitien XS MHz Crystal 8MHz -20°C ~ 70°C 2-SMD, No Lead
XSCEGCNANF-10.000000 Taitien XS MHz Crystal 10MHz -20°C ~ 70°C 2-SMD, No Lead
XSCGGCNANF-24.576000 Taitien XS MHz Crystal 24.576MHz -20°C ~ 70°C 2-SMD, No Lead
XSDEECNANF-25.000000 Taitien XS MHz Crystal 25MHz -20°C ~ 70°C 2-SMD, No Lead
XSDEELNANF-12.000000 Taitien XS MHz Crystal 12MHz -40°C ~ 85°C 2-SMD, No Lead
XSDEELNANF-13.560000 Taitien XS MHz Crystal 13.56MHz -40°C ~ 85°C 2-SMD, No Lead
XSDEELNANF-25.000000 Taitien XS MHz Crystal 25MHz -40°C ~ 85°C 2-SMD, No Lead
XSDEGCNANF-16.000000 Taitien XS MHz Crystal 16MHz -20°C ~ 70°C 2-SMD, No Lead
XSFGGLNANF-20.000000 Taitien XS MHz Crystal 20MHz -40°C ~ 85°C 2-SMD, No Lead
XSGEECNANF-16.000000 Taitien XS MHz Crystal 16MHz -20°C ~ 70°C 2-SMD, No Lead
XSGEELNANF-25.000000 Taitien XS MHz Crystal 25MHz -40°C ~ 85°C 2-SMD, No Lead
XSGEGLNANF-13.000000 Taitien XS MHz Crystal 13MHz -40°C ~ 85°C 2-SMD, No Lead
XSHEECNANF-25.000000 Taitien XS MHz Crystal 25MHz -20°C ~ 70°C 2-SMD, No Lead
XSHEELNANF-25.000000 Taitien XS MHz Crystal 25MHz -40°C ~ 85°C 2-SMD, No Lead
XSHGGLNANF-11.059200 Taitien XS MHz Crystal 11.0592MHz -40°C ~ 85°C 2-SMD, No Lead
XSHGGLNANF-12.000000 Taitien XS MHz Crystal 12MHz -40°C ~ 85°C 2-SMD, No Lead
XSHGGLNANF-16.000000 Taitien XS MHz Crystal 16MHz -40°C ~ 85°C 2-SMD, No Lead
XSHGGLNANF-24.000000 Taitien XS MHz Crystal 24MHz -40°C ~ 85°C 2-SMD, No Lead
XZABBCNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZABPCNANF-40.000000 Taitien XZ MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XZAPPCNANF-16.000000 Taitien XZ MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XZBBBCNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZBBCCNANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZBCCCNANF-16.000000 Taitien XZ MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XZCBBCNANF-16.000000 Taitien XZ MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XZCBBCNANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZCEECNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XZDBPCNANF-16.000000 Taitien XZ MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XZIEELNANF-16.000000 Taitien XZ MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XZLEFLNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZDCELNANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XZDCELNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XXHCECAANF-26.690000 Taitien XX MHz Crystal 26.69MHz -20°C ~ 70°C 4-SMD, No Lead
XZCEECAANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -20°C ~ 70°C 4-SMD, No Lead
XSDEELAANF-12.000000 Taitien XS MHz Crystal 12MHz -40°C ~ 85°C 2-SMD, No Lead
XSDEELAANF-13.560000 Taitien XS MHz Crystal 13.56MHz -40°C ~ 85°C 2-SMD, No Lead
XSGEECAANF-16.000000 Taitien XS MHz Crystal 16MHz -20°C ~ 70°C 2-SMD, No Lead
XSGEELAANF-25.000000 Taitien XS MHz Crystal 25MHz -40°C ~ 85°C 2-SMD, No Lead
XSHEECAANF-25.000000 Taitien XS MHz Crystal 25MHz -20°C ~ 70°C 2-SMD, No Lead
XSHEELAANF-25.000000 Taitien XS MHz Crystal 25MHz -40°C ~ 85°C 2-SMD, No Lead
XXBBBCNANF-32.000000 Taitien XX MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XXDPPCNANF-27.000000 Taitien XX MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XZDCELAANF-27.120000 Taitien XZ MHz Crystal 27.12MHz -40°C ~ 85°C 4-SMD, No Lead
XXGEELNANF-25.000000 Taitien XX MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XXHCCLNANF-12.288000 Taitien XX MHz Crystal 12.288MHz -40°C ~ 85°C 4-SMD, No Lead
XVCCECNANF-25.000000 Taitien XV MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XSGCCLNANF-25.000000 Taitien XS MHz Crystal 25MHz -40°C ~ 85°C 2-SMD, No Lead
XSGCECNANF-8.000000 Taitien XS MHz Crystal 8MHz -20°C ~ 70°C 2-SMD, No Lead
XSGCELNANF-8.000000 Taitien XS MHz Crystal 8MHz -40°C ~ 85°C 2-SMD, No Lead
XSHCCLNANF-25.000000 Taitien XS MHz Crystal 25MHz -20°C ~ 70°C 2-SMD, No Lead
XXBBBCAANF-26.000000 Taitien XX MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XXHEELAANF-18.432000 Taitien XX MHz Crystal 18.432MHz -40°C ~ 85°C 4-SMD, No Lead
XZBBBCAANF-26.000000 Taitien XZ MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
XZBBBDAANF-26.000000 Taitien XZ MHz Crystal 26MHz -30°C ~ 85°C 4-SMD, No Lead
XZCBBCAANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XZHBBCAANF-32.000000 Taitien XZ MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XSCDDCAANF-24.000000 Taitien XS MHz Crystal 24MHz -20°C ~ 70°C 2-SMD, No Lead
XSGCCLAANF-25.000000 Taitien XS MHz Crystal 25MHz -40°C ~ 85°C 2-SMD, No Lead
XXBBCLNANF-16.000000 Taitien XX MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XXFBBLNANF-20.000000 Taitien XX MHz Crystal 20MHz -40°C ~ 85°C 4-SMD, No Lead
XXGBCLNANF-24.000000 Taitien XX MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XZBPELAANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZCBCLAANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZCBELAANF-24.000000 Taitien XZ MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XSFPPCNANF-50.000000 Taitien XS MHz Crystal 50MHz -20°C ~ 70°C 2-SMD, No Lead
XZBBCDAANF-26.000000 Taitien XZ MHz Crystal 26MHz -30°C ~ 85°C 4-SMD, No Lead
XSDEELNANF-37.050000 Taitien XS MHz Crystal 37.05MHz -40°C ~ 85°C 2-SMD, No Lead
X3DBBCNANF-26.000000 Taitien X3 MHz Crystal 26MHz -20°C ~ 70°C 4-SMD, No Lead
X3DCCCNANF-24.000000 Taitien X3 MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
X3FBPDNANF-37.400000 Taitien X3 MHz Crystal 37.4MHz -30°C ~ 85°C 4-SMD, No Lead
X3FEECNANF-24.000000 Taitien X3 MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
X3HCECNANF-25.000000 Taitien X3 MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-50.000000 Taitien X3 MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-50.000000 Taitien X3 MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
X3LEECNANF-50.000000 Taitien X3 MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XSCDDCNANF-24.000000 Taitien XS MHz Crystal 24MHz -20°C ~ 70°C 2-SMD, No Lead
XZABPLNANF-24.000000 Taitien XZ MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XZBBCLNANF-16.000000 Taitien XZ MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XZBBELNANF-16.000000 Taitien XZ MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XZBPELNANF-30.000000 Taitien XZ MHz Crystal 30MHz -40°C ~ 85°C 4-SMD, No Lead
XZCBCLNANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZCBELNANF-24.000000 Taitien XZ MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XZDBPLNANF-24.000000 Taitien XZ MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XZDPPLNANF-32.000000 Taitien XZ MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XZAPPCAANF-16.000000 Taitien XZ MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XZDBPCAANF-16.000000 Taitien XZ MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XVEBBCNANF-40.000000 Taitien XV MHz Crystal 40MHz -20°C ~ 70°C 4-SMD, No Lead
XYABBCNANF-16.000000 Taitien XY MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XYABBCNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYACELNANF-16.000000 Taitien XY MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XYAGCLNANF-26.000000 Taitien XY MHz Crystal 26MHz -40°C ~ 85°C 4-SMD, No Lead
XYCBBCNANF-32.000000 Taitien XY MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XYCBCLNANF-32.000000 Taitien XY MHz Crystal 32MHz -40°C ~ 85°C 4-SMD, No Lead
XYCCCCNANF-25.000000 Taitien XY MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XYDEECNANF-24.000000 Taitien XY MHz Crystal 24MHz -20°C ~ 70°C 4-SMD, No Lead
XYGEECNANF-25.000000 Taitien XY MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XYGEGLNANF-25.000000 Taitien XY MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XYHCCCNANF-30.000000 Taitien XY MHz Crystal 30MHz -20°C ~ 70°C 4-SMD, No Lead
XYHEELNANF-20.000000 Taitien XY MHz Crystal 20MHz -40°C ~ 85°C 4-SMD, No Lead
XYLEEJNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
XYLEEJNANF-48.000000 Taitien XY MHz Crystal 48MHz -40°C ~ 105°C 4-SMD, No Lead
XVBCCLNANF-20.000000 Taitien XV MHz Crystal 20MHz -40°C ~ 85°C 4-SMD, No Lead
XVCCCLNANF-25.000000 Taitien XV MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XVDGGHNANF-20.000000 Taitien XV MHz Crystal 20MHz -40°C ~ 125°C 4-SMD, No Lead
XVHCELNANF-25.000000 Taitien XV MHz Crystal 25MHz -40°C ~ 85°C 4-SMD, No Lead
XJGPPCAANF-25.000000 Taitien XJ MHz Crystal 25MHz -20°C ~ 70°C HC49/US
XVCEELNANF-10.000000 Taitien XV MHz Crystal 10MHz -40°C ~ 85°C 4-SMD, No Lead
XVDEECNANF-12.000000 Taitien XV MHz Crystal 12MHz -20°C ~ 70°C 4-SMD, No Lead
XVDEECNANF-16.000000 Taitien XV MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XVDGGCNANF-27.000000 Taitien XV MHz Crystal 27MHz -20°C ~ 70°C 4-SMD, No Lead
XVDGGHNANF-28.000000 Taitien XV MHz Crystal 28MHz -40°C ~ 125°C 4-SMD, No Lead
XVDGHHNANF-27.000000 Taitien XV MHz Crystal 27MHz -40°C ~ 125°C 4-SMD, No Lead
XVECCLNANF-13.000000 Taitien XV MHz Crystal 13MHz -40°C ~ 85°C 4-SMD, No Lead
XVFEGCNANF-16.000000 Taitien XV MHz Crystal 16MHz -20°C ~ 70°C 4-SMD, No Lead
XVHCCLNANF-16.000000 Taitien XV MHz Crystal 16MHz -40°C ~ 85°C 4-SMD, No Lead
XVHCELNANF-14.318180 Taitien XV MHz Crystal 14.31818MHz -40°C ~ 85°C 4-SMD, No Lead
XVHCELNANF-24.000000 Taitien XV MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XVHCELNANF-8.000000 Taitien XV MHz Crystal 8MHz -40°C ~ 85°C 4-SMD, No Lead
XVHDDCNANF-25.000000 Taitien XV MHz Crystal 25MHz -20°C ~ 70°C 4-SMD, No Lead
XVHEELNANF-24.000000 Taitien XV MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XVHEELNANF-27.000000 Taitien XV MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XVHEELNANF-8.000000 Taitien XV MHz Crystal 8MHz -40°C ~ 85°C 4-SMD, No Lead
XJDECCAANF-4.194304 Taitien XJ MHz Crystal 4.194304MHz -20°C ~ 70°C HC49/US
X2HCCCNANF-12.000000 Taitien X2 MHz Crystal 12MHz -20°C ~ 70°C 4-SMD, No Lead
XXCBELNANF-12.000000 Taitien XX MHz Crystal 12MHz -40°C ~ 85°C 4-SMD, No Lead
XIHEELAANF-11.059200 Taitien XI MHz Crystal 11.0592MHz -40°C ~ 85°C HC49/US
XIHEELAANF-16.000000 Taitien XI MHz Crystal 16MHz -40°C ~ 85°C HC49/US
XIHEELAANF-25.000000 Taitien XI MHz Crystal 25MHz -40°C ~ 85°C HC49/US
XIHEELAANF-4.000000 Taitien XI MHz Crystal 4MHz -40°C ~ 85°C HC49/US
XIHEELAANF-7.372800 Taitien XI MHz Crystal 7.3728MHz -40°C ~ 85°C HC49/US
XIHEELAANF-8.000000 Taitien XI MHz Crystal 8MHz -40°C ~ 85°C HC49/US
XXCBBCNANF-32.000000 Taitien XX MHz Crystal 32MHz -20°C ~ 70°C 4-SMD, No Lead
XVFBCLNANF-12.000000 Taitien XV MHz Crystal 12MHz -40°C ~ 85°C 4-SMD, No Lead
XVGBBCNANF-20.000000 Taitien XV MHz Crystal 20MHz -20°C ~ 70°C 4-SMD, No Lead
XJCBBIAANF-10.368000 Taitien XJ MHz Crystal 10.368MHz -10°C ~ 60°C HC49/US
XIHCELAANF-16.000000 Taitien XI MHz Crystal 16MHz -40°C ~ 85°C HC49/US
XVCEECNANF-50.000000 Taitien XV MHz Crystal 50MHz -20°C ~ 70°C 4-SMD, No Lead
XVFBGCNANF-12.000000 Taitien XV MHz Crystal 12MHz -20°C ~ 70°C 4-SMD, No Lead
XVGBCLNANF-24.000000 Taitien XV MHz Crystal 24MHz -40°C ~ 85°C 4-SMD, No Lead
XVGBELNANF-27.000000 Taitien XV MHz Crystal 27MHz -40°C ~ 85°C 4-SMD, No Lead
XVGBELNANF-8.000000 Taitien XV MHz Crystal 8MHz -40°C ~ 85°C 4-SMD, No Lead
Taitien泰艺晶振)成立于1976年,上世纪90年代早期,是音叉原始制造商之一。 在众多的台产晶振中有着举足轻重的地位,是全球领先的频率元件供应商,该公司具备悠久的历史,更是多知名企业指定供应商,主要给市场上提供各种电子元器件,水晶器件,如石英晶振、贴片晶振、石英晶体振荡器、温补晶振、压控晶振、压控温补振荡器等频率元件。

泰艺晶振推出市场上的产品均经过各项严苛的工序和试验才可流入市场,每道工序均严格按照欧盟ROHS标准生产,经过长期的老化、温度测试等试验,只为确定用户在使用过程中不会出现任何产品质量问题。MHz范围晶体X3型非常适合低电路板高度或超小型可穿戴应用,X3AEELNANF-26.000000,石英晶体

          分享到:

网友热评

点击返回顶部点击返回顶部
