完美适合纳米细胞的温补晶体振荡器ECS-TXO53-S3-33-500-BN-TR

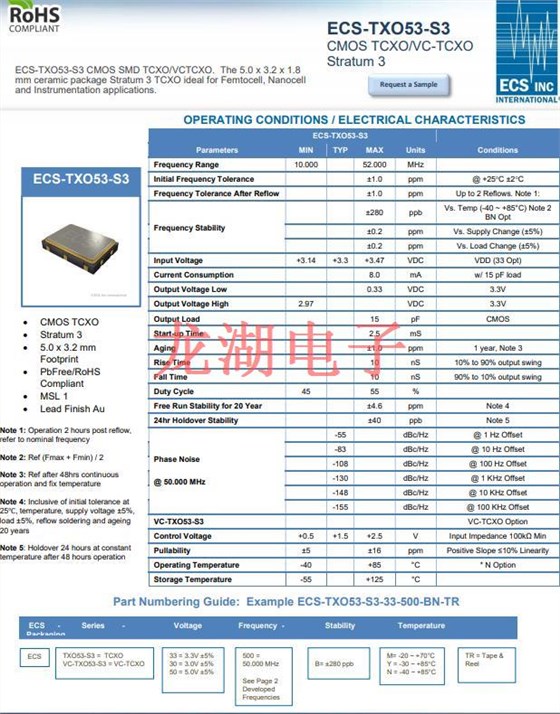

ECS Inc. International’s ECS-TXO53-S3 is a new series of surface mount stratum 3 temperature compensated crystal oscillators. This family of TCXOs comes in a 5.0 mm 3.2 mm x 1.80 mm multi-pad ceramic package that offers a frequency stability of ±280ppb over the standard industrial operating temperature range of -40ºC to +85ºC. With the HCMOS output, multi-pad configurations and standard frequencies between 10 MHz and 52 MHz, the ECS-TXO53-S3 provides excellent phase noise performance. Ideal for femtocell, nanocell and instrumentation applications.

完美适合纳米细胞的温补晶体振荡器ECS-TXO53-S3-33-500-BN-TR，ECS晶振国际公司的ECS-TXO53-S3是一种新型表面贴装三层温补晶体振荡器系列。该系列tcxo采用5.0 mm 3.2 mm x 1.80 mm多衬垫陶瓷封装，在-40ºC至+85ºC的标准工业工作温度范围内提供±280ppb的频率稳定性。凭借HCMOS输出，多衬垫配置和10 MHz至52 MHz之间的标准频率，ECS-TXO53-S3提供了出色的相位噪声性能。理想的家庭电池，纳米电池和仪器应用。

Manufacturer Part Number原厂代码	Manufacturer品牌	Series型号	Frequency 频率	Operating Temperature工作温度
ECS-2333-080-BN-TR	ECS晶振	ECS-2333	8MHz	-40°C ~ 85°C
ECS-2333-040-BN-TR	ECS晶振	ECS-2333	4MHz	-40°C ~ 85°C
ECS-2333-040-BN-TR	ECS晶振	ECS-2333	4MHz	-40°C ~ 85°C
ECS-2333-040-BN-TR	ECS晶振	ECS-2333	4MHz	-40°C ~ 85°C
ECS-2333-120-BN-TR	ECS晶振	ECS-2333	12MHz	-40°C ~ 85°C
ECS-2333-120-BN-TR	ECS晶振	ECS-2333	12MHz	-40°C ~ 85°C
ECS-2333-120-BN-TR	ECS晶振	ECS-2333	12MHz	-40°C ~ 85°C
ECS-3953M-200-B-TR	ECS晶振	ECS-3953M	20MHz	-10°C ~ 70°C
ECS-3953M-200-B-TR	ECS晶振	ECS-3953M	20MHz	-10°C ~ 70°C
ECS-3953M-200-B-TR	ECS晶振	ECS-3953M	20MHz	-10°C ~ 70°C
ECS-3953M-160-B-TR	ECS晶振	ECS-3953M	16MHz	-10°C ~ 70°C
ECS-3953M-160-B-TR	ECS晶振	ECS-3953M	16MHz	-10°C ~ 70°C
ECS-3953M-160-B-TR	ECS晶振	ECS-3953M	16MHz	-10°C ~ 70°C
ECS-3953M-018-B-TR	ECS晶振	ECS-3953M	1.8432MHz	-10°C ~ 70°C
ECS-3953M-018-B-TR	ECS晶振	ECS-3953M	1.8432MHz	-10°C ~ 70°C
ECS-3953M-018-B-TR	ECS温度补偿晶振	ECS-3953M	1.8432MHz	-10°C ~ 70°C
ECS-3953M-040-B-TR	ECS晶振	ECS-3953M	4MHz	-10°C ~ 70°C
ECS-3953M-040-B-TR	ECS晶振	ECS-3953M	4MHz	-10°C ~ 70°C
ECS-3953M-040-B-TR	ECS晶振	ECS-3953M	4MHz	-10°C ~ 70°C
ECS-3953M-036-B-TR	ECS晶振	ECS-3953M	3.6864MHz	-10°C ~ 70°C
ECS-3953M-036-B-TR	ECS晶振	ECS-3953M	3.6864MHz	-10°C ~ 70°C
ECS-3953M-036-B-TR	ECS晶振	ECS-3953M	3.6864MHz	-10°C ~ 70°C
ECS-3953M-120-B-TR	ECS晶振	ECS-3953M	12MHz	-10°C ~ 70°C
ECS-3953M-120-B-TR	ECS晶振	ECS-3953M	12MHz	-10°C ~ 70°C

Image	Part Number	Frequency	Frequency Stability	Operating Temperature	Datasheet	Inventory
	ECS-TXO53-S3-33-100-BN-TR	10 MHz	±280ppb	-40ºC ~ 85ºC
	ECS-TXO53-S3-33-200-BN-TR	20 MHz	±280ppb	-40ºC ~ 85ºC
	ECS-TXO53-S3-33-250-BN-TR	25 MHz	±280ppb	-40ºC ~ 85ºC
	ECS-TXO53-S3-33-400-BN-TR	40 MHz	±280ppb	-40ºC ~ 85ºC
	ECS-TXO53-S3-33-500-BN-TR	50 MHz	±280ppb	-40ºC ~ 85ºC

特点：占地面积5.0mm x 3.2 mm x1.80mm，频率范围:10mhz~52mhz，±280ppb超温频率稳定性，标准工作温度范围-40ºC~ +85ºC，+3.3V电源电压，HCMOS输出层3，符合RoHS和REACH 3标准.5032mm的贴片型有源晶振Stratum 3 TCXO是Femtocell, nanocer的理想选择仪表应用。

完美适合纳米细胞的温补晶体振荡器ECS-TXO53-S3-33-500-BN-TR，ECS有源振荡器应用范围：毫微微蜂窝，纳米细胞，仪表，测试和测量，基站，SyncE，IP网络，全球定位系统(GPS)，点对点无线电，背负式无线电.
