QCM20-21AF12-32.000,QVS无源谐振器,6G路由器晶振，尺寸为5.0x3.2x1.3mm，频率为32MHZ，负载电容12pF,美国进口晶振，两脚贴片晶振，陶瓷谐振器，贴片晶体，无源贴片晶振，陶瓷晶振，音叉晶体，水晶振动子，5032无源晶体，无源谐振器，QVS贴片晶振，智能手机专用晶振，蓝牙音响晶振，无线设备贴片晶振，语音应用陶瓷晶振，移动应用无源晶振，产品具有高性能高品质低损耗的特点，由于晶振产品本身可发挥优良的电气特性,满足无铅焊接的高温回流温度曲线要求.
陶瓷晶振产品很适合用于智能手机，无线设备，语音应用，蓝牙音响，电子数码，网络产品等领域.QCM20-21AF12-32.000,QVS无源谐振器,6G路由器晶振.
QCM20-21AF12-32.000,QVS无源谐振器,6G路由器晶振参数表

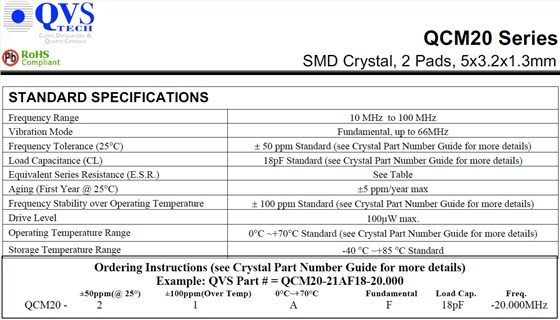

| STANDARD SPECIFICATIONS | ||||||||||||||||||||
| Frequency Range | 32 MHz | |||||||||||||||||||
| Vibration Mode | Fundamental, up to 66MHz | |||||||||||||||||||
| Frequency Tolerance (25。C) | ±50 ppm Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||
| Load Capacitance (CL) | 18pF Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||

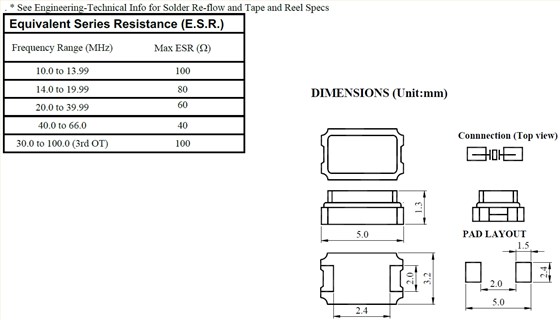

| Equivalent Series Resistance (E.S.R.) | See Table | |||||||||||||||||||
| Aging (First Year @ 25。C) | ±5 ppm/year max | |||||||||||||||||||
| Frequency Stability over Operating Temperature | ±100 ppm Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||
| Drive Level | 100μW max. | |||||||||||||||||||
| Operating Temperature Range | 0。C ~+70。C Standard (see Crystal Part Number Guide for more details) | |||||||||||||||||||
| Storage Temperature Range | -40。C ~+85。C Standard | |||||||||||||||||||

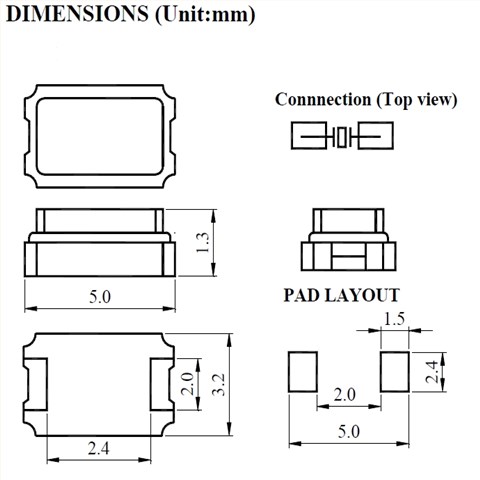

QCM20-21AF12-32.000,QVS无源谐振器,6G路由器晶振 尺寸图
SMD无源晶体产品特性：
频率范围:10-100MHZ
尺寸:5.0x3.2x1.3mm
工作温度:0°C ~+70°C
更多相关QVS晶振QVS Crystal型号，请联系我们！
