2016mm|FA2016AN|24MHz|X1E0003510015|10pF|±10ppm

LH-1

2016mm|FA2016AN|24MHz|X1E0003510015|10pF|±10ppm，日本进口晶振，EPSON爱普生株式会社，晶振型号：FA2016AN，编码为：X1E0003510015，是一款小体积晶振尺寸2.0x1.6x0.5mm封装，四脚贴片晶振，无源晶振，石英晶振，贴片晶振，无铅环保晶振，石英晶体谐振器，频率为：24MHz，工作温度范围：-40℃至+85℃，具有超小型，轻薄型，耐热及耐环境特点，石英晶振被广泛用于：移动通讯晶振，可穿戴设备晶振，智能手机晶振，无线局域网晶振，蓝牙模块晶振，ISM频段电台广播，小型便捷式设备，电信设备晶振，数码电子晶振，智能家居等应用。

LH-2

2016mm|FA2016AN|24MHz|X1E0003510015|10pF|±10ppm，参数表

项目	符号	FA2016AN 规格说明		条件
		用于RF参考	用于时钟
额定频率范围	f_nom	24.000 MHz ~ 54.000 MHz		基频请联系我们以便获取其他可用频率的相关信息
		24, 24.576, 25, 26, 27, 27.12, 30, 32, 37.4, 38.4,40, 48, 50, 52, 54 MHz		标准频率
储存温度范围	T_stg	-40 °C ~ +125 °C		裸存
工作温度范围	T_use	-40 °C ~ +85 °C
激励功率	DL	100 µW Max.	200 µW Max.	推荐: 1 µW ~ 100 µW
频率公差（标准）	f_tol	±10 × 10-6*1	±30 × 10-6	+25 °C 对于超出标准的规格说明，请联系我们以便获取相关信息

频率温度特征（标准）	f_tem	±10 × 10-6*1	±30 × 10-6	-20 °C ~ +75 °C 对于超出标准的规格说明，请联系我们以便获

负载电容	CL	6 pF ~ ∞		可指定
串联电阻（ESR)	R1	如下表图所示		-20 °C ~ +75 °C
频率老化	f_age	±1 × 10-6 / year Max.	±5 × 10-6 / year Max.	+25 °C, 第一年

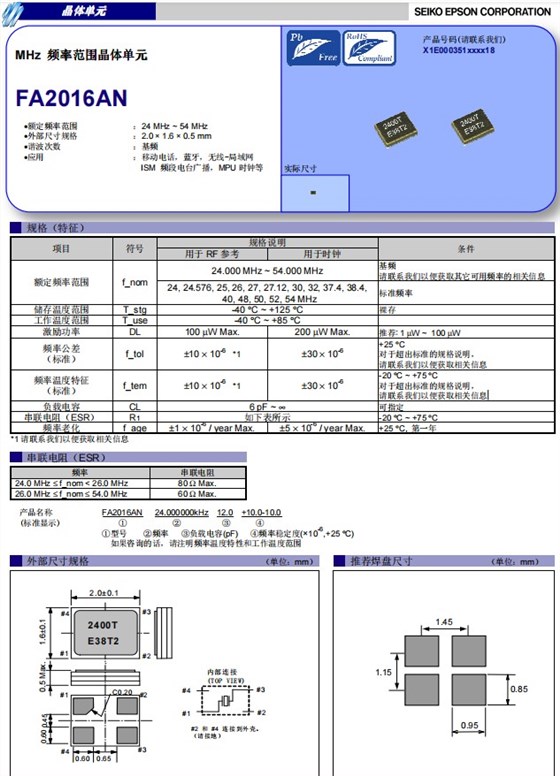

2016mm|FA2016AN|24MHz|X1E0003510015|10pF|±10ppm，尺寸图

日本进口晶振	尺寸	型号	频率	负载	频率 @+25°C
X1E0003510001	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	8 pF	+/-30 ppm
X1E0003510002	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	8 pF	+/-30 ppm
X1E0003510006	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	12 pF	+/-20 ppm
X1E0003510014	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	8 pF	+/-10 ppm
X1E0003510015	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	10 pF	+/-10 ppm
X1E0003510016	2 x 1.6 x 0.5mm	FA2016AN	24.576000 MHz	10 pF	+/-10 ppm
X1E0003510017	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	8 pF	+/-30 ppm
X1E0003510018	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	10 pF	+/-10 ppm
X1E0003510019	2 x 1.6 x 0.5mm	FA2016AN	27.000000 MHz	10 pF	+/-30 ppm
X1E0003510020	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	8 pF	+/-15 ppm
X1E0003510021	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	10 pF	+/-30 ppm
X1E0003510022	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	10 pF	+/-10 ppm
X1E0003510023	2 x 1.6 x 0.5mm	FA2016AN	37.400000 MHz	9 pF	+/-10 ppm
X1E0003510024	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	8 pF	+/-10 ppm
X1E0003510025	2 x 1.6 x 0.5mm	FA2016AN	40.000000 MHz	8 pF	+/-10 ppm
X1E0003510026	2 x 1.6 x 0.5mm	FA2016AN	48.000000 MHz	8 pF	+/-30 ppm
X1E0003510027	2 x 1.6 x 0.5mm	FA2016AN	48.000000 MHz	10 pF	+/-10 ppm
X1E0003510028	2016晶振	FA2016AN	50.000000 MHz	7 pF	+/-10 ppm
X1E0003510029	2 x 1.6 x 0.5mm	FA2016AN	52.000000 MHz	10 pF	+/-10 ppm
X1E0003510030	2 x 1.6 x 0.5mm	FA2016AN	54.000000 MHz	6 pF	+/-10 ppm
X1E0003510033	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-10 ppm
X1E0003510038	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	8 pF	+/-15 ppm
X1E0003510044	2 x 1.6 x 0.5mm	FA2016AN	49.152000 MHz	6 pF	+/-20 ppm
X1E0003510049	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	12 pF	+/-10 ppm
X1E0003510050	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	12 pF	+/-10 ppm
X1E0003510052	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-20 ppm
X1E0003510059	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	16 pF	+/-30 ppm
X1E0003510060	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	9 pF	+/-10 ppm
X1E0003510062	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	10 pF	+/-10 ppm
X1E0003510063	2 x 1.6 x 0.5mm	FA2016AN	27.120000 MHz	10 pF	+/-10 ppm
X1E0003510064	2 x 1.6 x 0.5mm	FA2016AN	30.000000 MHz	10 pF	+/-10 ppm
X1E0003510065	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	6 pF	+/-30 ppm
X1E0003510066	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	6 pF	+/-20 ppm
X1E0003510067	2 x 1.6 x 0.5mm	FA2016AN	50.000000 MHz	8 pF	+/-10 ppm
X1E0003510068	2 x 1.6 x 0.5mm	FA2016AN	50.000000 MHz	8 pF	+/-10 ppm
X1E0003510069	2 x 1.6 x 0.5mm	FA2016AN	25.000000 MHz	6 pF	+/-10 ppm
X1E0003510070	2 x 1.6 x 0.5mm	FA2016AN	26.000000 MHz	10 pF	+/-10 ppm
X1E0003510071	2 x 1.6 x 0.5mm	FA2016AN	27.000000 MHz	8 pF	+/-30 ppm
X1E0003510073	2 x 1.6 x 0.5mm	FA2016AN	38.400000 MHz	10 pF	+/-10 ppm
X1E0003510074	2 x 1.6 x 0.5mm	FA2016AN	32.000000 MHz	8 pF	+/-10 ppm
X1E0003510075	2 x 1.6 x 0.5mm	FA2016AN	24.000000 MHz	12 pF	+/-10 ppm
