彼得曼3215mm晶振,M3215A-32.768kHz-±20ppm-12.5pF,车载电子6G晶振

产品简介

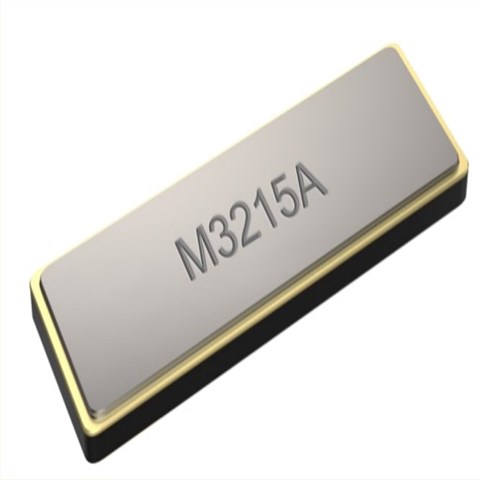

彼得曼3215mm晶振,M3215A-32.768kHz-±20ppm-12.5pF,车载电子6G晶振，德国进口晶振，PETERMANN彼得曼晶振，型号：M3215A，频率为：M3215A-32.768kHz-±20ppm-12.5pF，频率为：32.768KHz，负载电容：12.5pF，精度±20ppm，小体积晶振尺寸：3.2x1.5x0.75mm封装，PETERMANN Crystal，石英晶振，无源贴片晶振，无源晶振，两脚贴片晶振，音叉晶体，SMD晶体，32.768K无源晶体，石英晶体谐振器，轻薄型晶振，小型晶振，石英晶体。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。3215晶振被广泛应用于：无线设备专用晶振，时钟应用晶振，移动通信晶振，数码相机专用晶振，儿童游戏机晶振，通信设备晶振，时钟发生器的CPU，无线，移动通信，数码相机，儿童游戏机，通信设备，仪器仪表，蓝牙耳机等领域。

产品详情

LH-1

LH-2

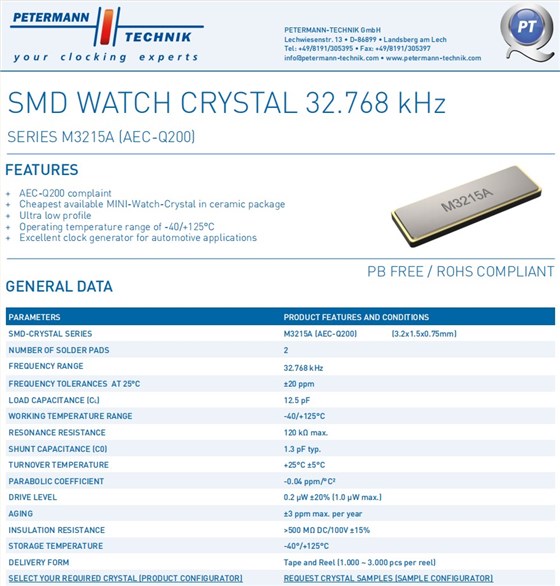

彼得曼3215mm晶振,M3215A-32.768kHz-±20ppm-12.5pF,车载电子6G晶振 参数表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS

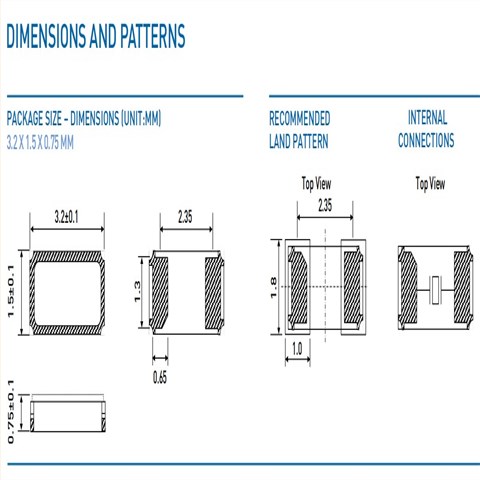

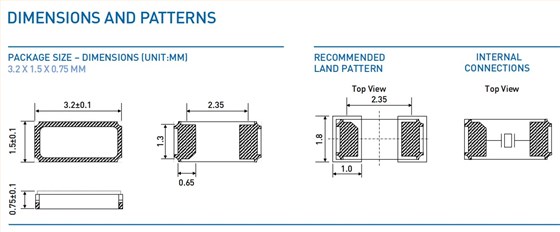

SMD-CRYSTAL SERIES	M3215 (3.21.50.75mm)
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25°C	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	12.5 pF (standard) 6，7 and 9.0 pF available on request
WORKING TEMPERATURE RANGE	-40/+85°C
RESONANCE RESISTANCE	70 kΩ max.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC COEFFICIENT	-0.04 ppm/°C²
DRIVE LEVEL	0.2 µW typical (0.5 μW max.)
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-55°/+125°C
DELIVERY FORM	Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape
